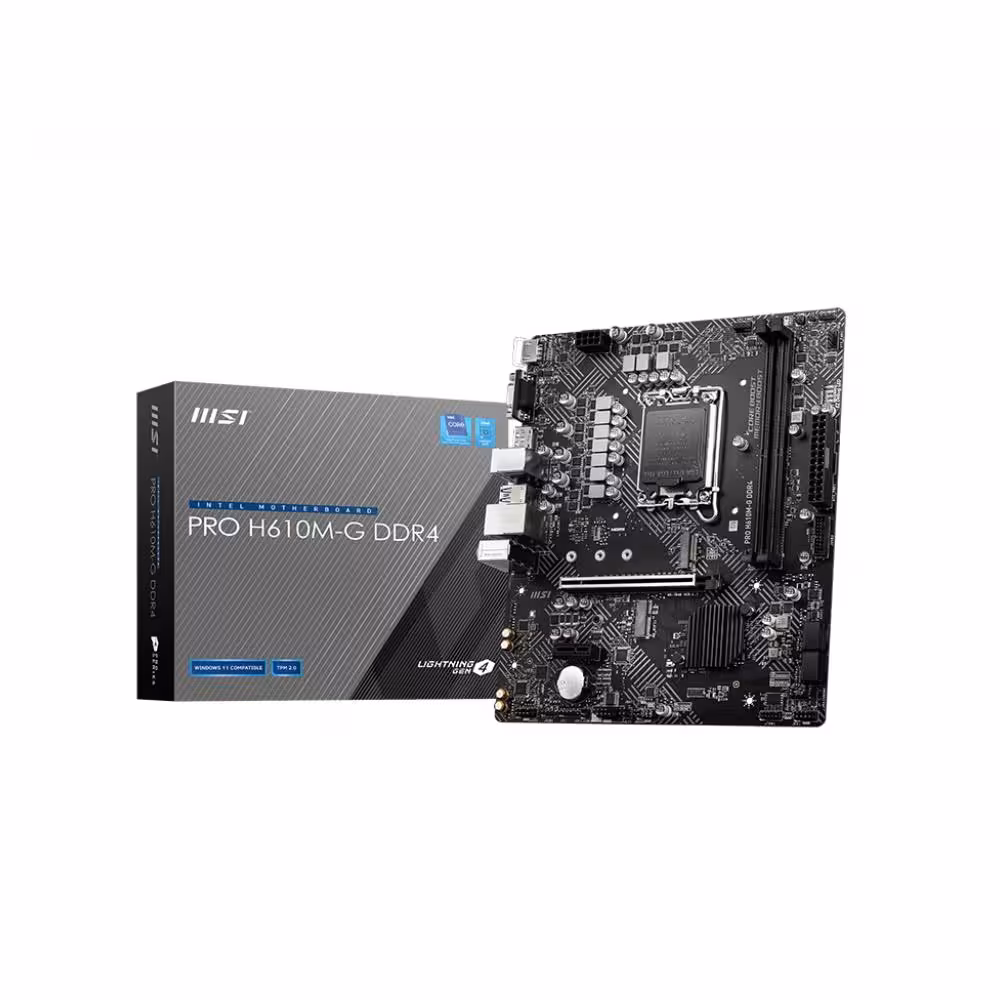

MSI PRO H610M-G DDR4 LGA 1700 Micro ATX Motherboard

This Micro ATX motherboard supports Intel processors on the LGA 1700 socket using the H610 chipset. It features dual-channel DDR4 memory slots supporting speeds up to 3200MHz and 64GB total capacity. Connectivity includes a PCIe 4.0 x16 slot, an M.2 storage socket, and Intel 1Gbps LAN. Integrated video outputs include HDMI, DisplayPort, and VGA for versatile display configurations.

VIP Computers is the UK's largest independent distributor of PC components, peripherals and associated products. VIP specialises in providing components and software that system integrators need to build PCs. The VIP Group has seen strong and continued growth since 1990. VIP has over 20 years’ experience of providing a flexible and reliable distribution service to customers, ranging from small independent retailers and etailer to major high-street chain stores.

UPC: 824142278789

Package Type: Retail

Warranty: 3 Years

Chipset: Intel H610

CPU Interface: Socket 1700

CPU Support: https://www.msi.com/Motherboard/PRO-H610M-G-DDR4/support#support-cpu

RAM Technology: DDR4 (Dual Channel)

RAM Slots: 2 x 288-pin

RAM Speeds: Up to DDR4 3200

Max. Memory Support: 64GB

PCI Express 4.0 x16: 1

PCI Express 3.0 x1: 1

S-ATA 6Gb/s Port(s): 4

M.2 Socket(s): 1 x SATA/PCIe 3.0 x4

On-Board LAN: 1 x Intel I219V 1Gbps LAN controller

On-Board Audio: Realtek ALC892/ ALC897 Codec

On-Board Video: Processor with integrated graphics is required

Back PS/2 Keyboard/Mouse Port: 1

Back USB 2.0 Port(s): 4

Back USB 3.2 Port(s) Type-A Gen 1: 2

Back VGA Port(s): 1

Back HDMI Port(s): 1

Back DisplayPort(s): 1

Back LAN Port(s): 1

Back Audio Jack(s): 3

24-pin ATX Power: 1

8-pin ATX Power: 1

TPM Header(s): 1

Internal Other Port(s): 1 x 4-pin RGB LED connector, 2 x 3-pin RAINBOW LED connectors, 4 x EZ Debug LED

Form Factor: Micro ATX

Product Width: 202mm

Product Length: 236mm

Package Width: 26cm

Package Length: 26cm

Package Height: 5.5cm

Gross Weight: 0.77Kg

Special Features: Supports 12th Gen Intel Core, Pentium Gold and Celeron processors for LGA 1700 socket., Supports DDR4 Memory, up to 3200(MAX) MHz., Core Boost: With premium layout and digital power design to support more cores and provide better performance., Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility., Lightning-Fast Experience: PCIe 4.0., Audio Boost: Reward your ears with studio grade sound quality., Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength.

In the box: Motherboard; Quick Installation Guide; M.2 Clip; 2 x SATA Cables; IO Shield; Driver Disk; MSi Case Badge
