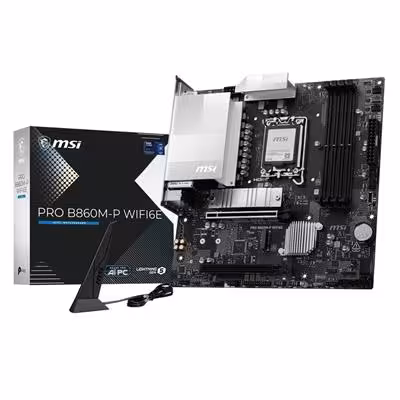

MSI PRO B860M-P WIFI6E Intel Socket 1851 DDR5 mATX Motherboard

This Micro-ATX motherboard features the Intel B860 chipset and Socket 1851 for latest-generation processor compatibility. It supports dual-channel DDR5 memory up to 8800MHz (O.C.) and includes PCIe 5.0 technology for high-speed storage and data transfer. Integrated Wi-Fi 6E and 2.5Gbps LAN provide fast, stable networking for professional and home setups.

VIP Computers is the UK's largest independent distributor of PC components, peripherals and associated products. VIP specialises in providing components and software that system integrators need to build PCs. The VIP Group has seen strong and continued growth since 1990. VIP has over 20 years’ experience of providing a flexible and reliable distribution service to customers, ranging from small independent retailers and etailer to major high-street chain stores.

Package Type: Retail

Warranty: 3 Years

Chipset: Intel B860

CPU Interface: Socket 1851

CPU Support: https://www.msi.com/Motherboard/PRO-B860M-P-WIFI6E/support#cpu

RAM Technology: DDR5 (Dual Channel)

RAM Slots: 4 x 288-pin

RAM Speeds: Up to DDR5 8800(O.C.)

Max. Memory Support: 256GB

PCI Express 4.0 x16: 1

PCI Express 5.0 x16: 1

S-ATA 6Gb/s Port(s): 4

RAID: Raid 0/1/5/10

M.2 Socket(s): 1 x PCIe Gen 5.0 x4, 1 x PCIe Gen 4.0 x4

LAN Speed: Realtek 8125 2.5Gbps LAN

Wireless NIC: Wi-Fi 6E

Wireless Technology: The Wireless module is pre-installed in the M.2 (Key-E) slot, Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz (160MHz) up to 2.4Gbps, Supports 802.11 a/ b/ g/ n/ ac/ ax

Bluetooth: v5.3

On-Board Audio: Realtek ALC897 Codec, 7.1-Channel High Definition Audio

On-Board Video: Processor with integrated graphics is required

Back USB 2.0 Port(s): 2

Back USB 5Gbps Port(s) Type-A: 3

Back VGA Port(s): 1

Back HDMI Port(s): 1

Back DisplayPort(s): 2

Back LAN Port(s): 1

Back Audio Jack(s): 3

Back Other Port(s): Wi-Fi / Bluetooth

Back Button(s): Clear CMOS

24-pin ATX Power: 1

8-pin ATX Power: 1

USB 2.0 Header(s): 4

USB 5Gbps Header(s): 3

Parallel Port Header(s): 1

COM Port Header(s): 1

Front Panel Audio Connector: 1

TPM Header(s): 1

Internal Other Port(s): 3 x Addressable V2 RGB LED connector, 1 x RGB LED connector

Form Factor: Micro ATX

Product Width: 243.84mm

Product Length: 243.84mm

Package Width: 26.8cm

Package Length: 34.2cm

Package Height: 7cm

Net Weight: 1.21Kg

Gross Weight: 1.73Kg

In the box: Motherboard; Quick Installation Guide; SATA Cable; M.2 Screw / Standoff Sets; EZ Wi-Fi Antenna
