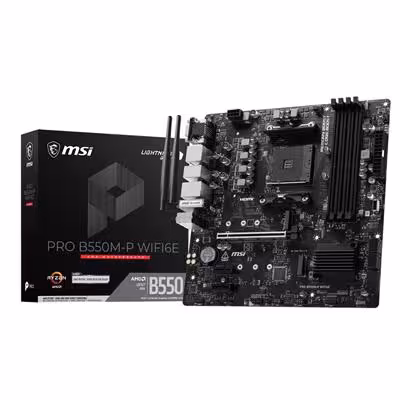

MSI PRO B550M-P WIFI6E AMD B550 AM4 Micro-ATX Motherboard

This Micro-ATX motherboard utilizes the AMD B550 chipset and Socket AM4 to provide a reliable foundation for professional builds. It features onboard Wi-Fi 6E and Bluetooth 5.3 for high-speed wireless connectivity alongside PCIe 4.0 support for modern graphics cards and storage. Four DDR4 DIMM slots accommodate up to 128GB of system memory with overclocked speeds reaching 4400MHz.

VIP Computers is the UK's largest independent distributor of PC components, peripherals and associated products. VIP specialises in providing components and software that system integrators need to build PCs. The VIP Group has seen strong and continued growth since 1990. VIP has over 20 years’ experience of providing a flexible and reliable distribution service to customers, ranging from small independent retailers and etailer to major high-street chain stores.

Package Type: Retail

Warranty: 3 Years

Chipset: AMD B550

CPU Interface: Socket AM4

CPU Support: https://www.msi.com/Motherboard/PRO-B550M-P-WIFI6E/support#cpu

RAM Technology: DDR4 (Dual Channel)

RAM Slots: 4 x 288-pin

RAM Speeds: Up to DDR4 4400+ (O.C.)

Max. Memory Support: 128GB

PCI Express 4.0 x16: 1

PCI Express 3.0 x1: 2

S-ATA 6Gb/s Port(s): 4

RAID: Raid 0/1/10

M.2 Socket(s): 1 x PCIe Gen 4.0 x4/SATA, 1 x PCIe Gen 3.0 x4

LAN Speed: Realtek RTL8111H 1Gbps LAN

Wireless NIC: Wi-Fi 6E

Wireless Technology: The Wireless module is pre-installed in the M.2 (Key-E) slot, Dual-band 1T1R mode, Supports MU-MIMO RX, Supports 2.4GHz/ 5GHz/ 6GHz* frequency band, Supports 802.11 a/ b/ g/ n/ ac/ ax

Bluetooth: v5.3

On-Board Audio: Realtek ALC897 Codec, 7.1-Channel High Definition Audio

On-Board Video: Processor with integrated graphics is required

Back PS/2 Keyboard/Mouse Port: 1

Back USB 2.0 Port(s): 2

Back USB 5Gbps Port(s) Type-A: 4

Back VGA Port(s): 1

Back HDMI Port(s): 1

Back DisplayPort(s): 1

Back LAN Port(s): 1

Back Audio Jack(s): 3

Back Other Port(s): Wi-Fi / Bluetooth

24-pin ATX Power: 1

8-pin ATX Power: 1

USB 2.0 Header(s): 4

USB 5Gbps Header(s): 3

COM Port Header(s): 1

Front Panel Audio Connector: 1

TPM Header(s): 1

Internal Other Port(s): 2 x Addressable V2 RGB LED connector, 2 x RGB LED connector, 4 x EZ Debug LED

Form Factor: Micro ATX

Product Width: 243.84mm

Product Length: 243.84mm

Package Width: 26.8cm

Package Length: 29.8cm

Package Height: 5.3cm

Net Weight: 0.67Kg

Gross Weight: 1.03Kg

Special Features: Supports AMD Ryzen 5000 Series, 5000 G-Series, 4000 G-Series, and 3000 Series processors., Supports DDR4 Memory, up to 4400+ MT/s (OC)., Lightning Fast Experience: PCIe 4.0 slot and Lightning Gen4 x4 M.2., EZ DIY: EZ Debug LED and EZ Mounting., Wi-Fi 6E Solution: the ideal solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission., Audio Boost: Reward your ears with studio-grade sound quality., MSI Centre: A brand-new software which integrates all MSI exclusive tools with user-friendly user interface.

In the box: Motherboard; Quick Installation Gudie; 2 x M.2 Screw / Standoff Sets; SATA Cable; Wi-Fi Antenna; IO Shield
