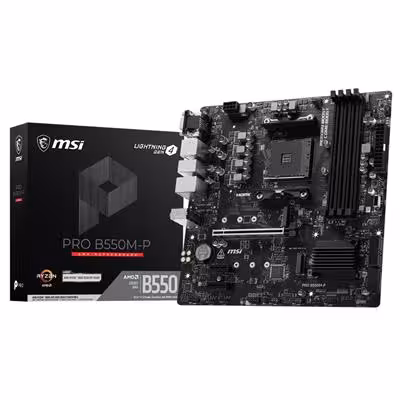

MSI PRO B550M-P AMD B550 Socket AM4 Micro-ATX Motherboard

This Micro-ATX motherboard features the AMD B550 chipset and supports Socket AM4 processors. It includes four DDR4 memory slots supporting speeds up to 4400MHz (O.C.) and a maximum capacity of 128GB. Connectivity options include Realtek 1Gbps LAN alongside HDMI, DisplayPort, and VGA outputs for integrated graphics support.

VIP Computers is the UK's largest independent distributor of PC components, peripherals and associated products. VIP specialises in providing components and software that system integrators need to build PCs. The VIP Group has seen strong and continued growth since 1990. VIP has over 20 years’ experience of providing a flexible and reliable distribution service to customers, ranging from small independent retailers and etailer to major high-street chain stores.

Package Type: Retail

Warranty: 3 Years

Chipset: AMD B550

CPU Interface: Socket AM4

CPU Support: https://www.msi.com/Motherboard/PRO-B550M-P/support#cpu

RAM Technology: DDR5 (Dual Channel)

RAM Slots: 4 x 288-pin

RAM Speeds: Up to DDR4 4400+ (O.C.)

Max. Memory Support: 128GB

PCI Express 3.0 x16: 2

PCI Express 3.0 x1: 2

S-ATA 6Gb/s Port(s): 4

RAID: Raid 0/1/10

LAN Speed: Realtek RTL8111H 1Gbps LAN

On-Board Audio: Realtek ALC897 Codec, 7.1-Channel High Definition Audio

On-Board Video: Processor with integrated graphics is required

Back PS/2 Keyboard/Mouse Port: 1

Back USB 2.0 Port(s): 2

Back USB 5Gbps Port(s) Type-A: 4

Back VGA Port(s): 1

Back HDMI Port(s): 1

Back DisplayPort(s): 1

Back LAN Port(s): 1

Back Audio Jack(s): 3

24-pin ATX Power: 1

8-pin ATX Power: 1

USB 2.0 Header(s): 4

USB 5Gbps Header(s): 3

COM Port Header(s): 1

Front Panel Audio Connector: 1

TPM Header(s): 1

Internal Other Port(s): 2 x Addressable V2 RGB LED connector, 2 x RGB LED connector

Product Width: 243.84mm

Product Length: 243.84mm

Package Width: 27.2cm

Package Length: 28cm

Package Height: 6.5cm

Net Weight: 0.55Kg

Gross Weight: 0.88Kg

Special Features: Supports AMD Ryzen 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, and 3000 G-Series processors., Supports DDR4 Memory, up to 4400+ MT/s (OC)., Lightning-Fast Experience: PCIe 4.0 slot and Lightning Gen4 x4 M.2., EZ DIY: EZ Debug LED and EZ Mounting., Audio Boost: Reward your ears with studio-grade sound quality., MSI Centre: A brand-new software which integrates all MSI exclusive tools with user-friendly user interface.

In the box: Motherboard; Quick Installation Guide; IO Shield; 2 x M.2 Screw / Standoff Sets; SATA Cable
