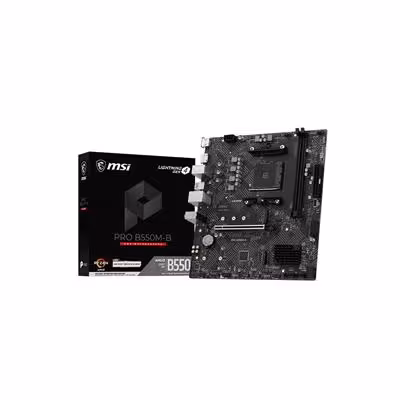

MSI PRO B550M-B AMD B550 Socket AM4 M-ATX Motherboard DDR4 PCIe 4.0

This Micro-ATX motherboard supports AMD AM4 processors and utilizes the B550 chipset to provide reliable performance for professional builds. It features a PCIe 4.0 slot for high-bandwidth graphics cards and M.2 Gen4 support for fast NVMe storage. Two DDR4 slots allow for up to 64GB of memory, complemented by Realtek 1Gbps LAN and 7.1-channel high-definition audio.

VIP Computers is the UK's largest independent distributor of PC components, peripherals and associated products. VIP specialises in providing components and software that system integrators need to build PCs. The VIP Group has seen strong and continued growth since 1990. VIP has over 20 years’ experience of providing a flexible and reliable distribution service to customers, ranging from small independent retailers and etailer to major high-street chain stores.

Package Type: Retail

Warranty: 3 Years

Chipset: AMD B550

CPU Interface: Sockey AM4

CPU Support: https://www.msi.com/Motherboard/PRO-B550M-B/support#cpu

RAM Technology: DDR4 (Dual Channel)

RAM Slots: 2 x 288-pin

RAM Speeds: Up to DDR4 4600+ (O.C.)

Max. Memory Support: 64GB

PCI Express 4.0 x16: 1

S-ATA 6Gb/s Port(s): 4

RAID: Raid 0/1/5/10

M.2 Socket(s): 1 x PCIe Gen 4.0 x4/SATA, 1 x PCIe Gen 3.0 x4

LAN Speed: Realtek RTL8111H 1Gbps LAN

On-Board Audio: Realtek ALC897 Codec, 7.1-Channel High Definition Audio

Back PS/2 Keyboard/Mouse Port: 1

Back USB 2.0 Port(s): 2

Back USB 5Gbps Port(s) Type-A: 4

Back HDMI Port(s): 1

Back DisplayPort(s): 1

Back LAN Port(s): 1

Back Audio Jack(s): 3

24-pin ATX Power: 1

8-pin ATX Power: 1

USB 2.0 Header(s): 4

USB 5Gbps Header(s): 3

COM Port Header(s): 1

TPM Header(s): 1

Internal Other Port(s): 3 x Addressable V2 RGB LED connector, 1 x RGB LED connector

Product Width: 220mm

Product Length: 243.84mm

Package Width: 25.9cm

Package Length: 26cm

Package Height: 5.5cm

Net Weight: 0.50Kg

Gross Weight: 0.88Kg

Special Features: Supports AMD Ryzen 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, and 3000 G-Series processors., Supports DDR4 Memory, up to 4600+ MT/s (OC)., Lightning-Fast Experience: PCIe 4.0 slot and Lightning Gen4 x4 M.2., EZ DIY: EZ Debug LED, EZ Mounting., Audio Boost: Reward your ears with studio-grade sound quality., MSI Centre: A brand-new software which integrates all MSI exclusive tools with user-friendly user interface.

In the box: Motherboard; Quick Installation Guide; IO Shield; 2 x M.2 Screw / Standoff Sets; SATA Cable
