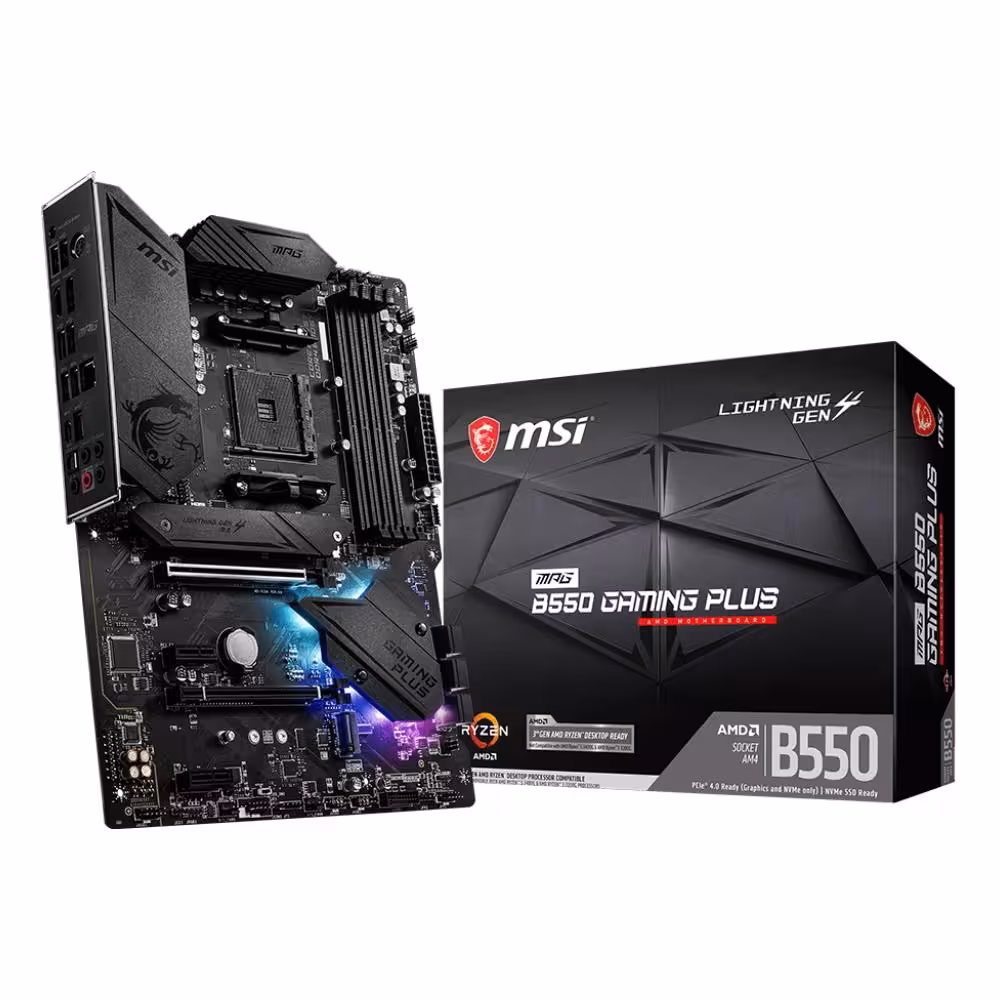

MSI MPG B550 GAMING PLUS AMD Socket AM4 Motherboard

Designed for the AMD B550 chipset, this Socket AM4 motherboard supports DDR4 memory with speeds reaching up to 4400MHz across four slots. It features PCIe 4.0 technology for enhanced bandwidth and dual M.2 sockets to accommodate high-speed storage configurations. Connectivity options include USB 3.2 Gen 2 Type-C, HDMI, and DisplayPort for comprehensive peripheral and display support.

VIP Computers is the UK's largest independent distributor of PC components, peripherals and associated products. VIP specialises in providing components and software that system integrators need to build PCs. The VIP Group has seen strong and continued growth since 1990. VIP has over 20 years’ experience of providing a flexible and reliable distribution service to customers, ranging from small independent retailers and etailer to major high-street chain stores.

Package Type: Retail

Warranty: 3 Years

Chipset: AMD B550

CPU Interface: Socket AM4

CPU Support: https://www.msi.com/Motherboard/support/MPG-B550-GAMING-PLUS#support-cpu

RAM Technology: DDR4 (Dual Channel)

RAM Slots: 4 x 288-pin

RAM Speeds: Up to DDR4 4400+

Max. Memory Support: 128GB

PCI Express 3.0 x16: 1

PCI Express 4.0 x16: 1

PCI Express 3.0 x1: 2

S-ATA 6Gb/s Port(s): 6

RAID: Raid 0/1/10

M.2 Socket(s): 2

On-Board LAN: 1 x Realtek 8111H Gigabit LAN controller

On-Board Audio: Realtek ALC892 Codec

On-Board Video: Processor with integrated graphics is required

Back PS/2 Keyboard/Mouse Port: 1

Back USB 2.0 Port(s): 4

Back USB 3.2 Port(s) Type-A Gen 1: 2

Back USB 3.2 Port(s) Type-A Gen 2: 1

Back USB 3.2 Port(s) Type-C Gen 2: 1

Back HDMI Port(s): 1

Back DisplayPort(s): 1

Back LAN Port(s): 1

Back Audio Jack(s): 5

Back S/PDIF Output Port(s): 1

Back Button(s): Flash BIOS

24-pin ATX Power: 1

8-pin ATX Power: 1

USB 2.0 Header(s): 2

USB 3.2 Header(s) Gen 1: 2

Front Panel Audio Connector: 1

TPM Header(s): 1

Internal Other Port(s): 1 x 4-pin RGB LED Connector, 2 x 3-pin RAINBOW LED Connectors

Form Factor: Standard ATX

Product Width: 244mm

Product Length: 305mm

Package Width: 27cm

Package Length: 34.5cm

Package Height: 9cm

Gross Weight: 1.81Kg

Special Features: Extended Heatsink Design: MSI extended PWM heatsink and enhanced circuit design ensures even high-end processors to run in full speed., 2oz Thickened Copper PCB: An enhanced PCB design improves heat dissipation and performance reliability., Lightning Gen4 solution: The latest Gen4 PCI-E and M.2 solution with up to 64GB/s bandwidth for maximum transfer speed., Flash BIOS Button: Simply use a USB key to flash any BIOS within seconds, without installing a CPU, memory or graphics card., Front Type-C USB 3.2 Gen 1 5Gbps: Compatible with the latest PC chassis and perfect for external drives and other mobile devices., M.2 Shield FROZR: Strengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, making them run faster., Pre-installed I/O Shielding: Better EMI protection and more convenience for installation, EZ LED Control: One button to control LED on/off easily

In the box: Motherboard; Manual; Quick Installation Guide; MSI Case Badge; 2 x SATA Cables; Support Disk
