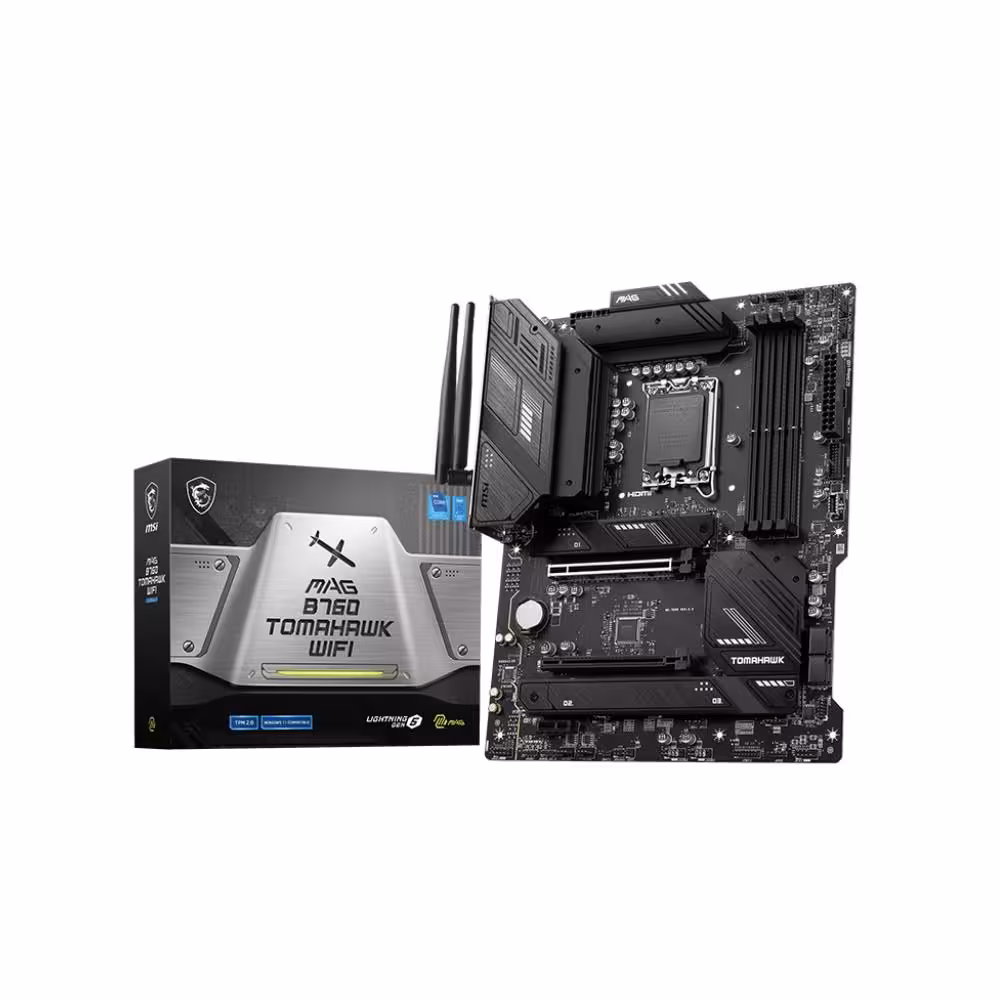

MSI MAG B760 TOMAHAWK WIFI Socket 1700 DDR5 Motherboard

This Intel B760 chipset motherboard supports Socket 1700 processors and dual-channel DDR5 memory up to 7000MHz. Integrated Wi-Fi 6E and 2.5Gbps LAN provide high-speed networking, while PCIe 5.0 and Gen 4 M.2 slots offer advanced expansion options. Multiple USB 3.2 Gen 2 ports and HDMI connectivity ensure versatile peripheral support for your build.

VIP Computers is the UK's largest independent distributor of PC components, peripherals and associated products. VIP specialises in providing components and software that system integrators need to build PCs. The VIP Group has seen strong and continued growth since 1990. VIP has over 20 years’ experience of providing a flexible and reliable distribution service to customers, ranging from small independent retailers and etailer to major high-street chain stores.

UPC: 824142309285

Package Type: Retail

Warranty: 3 Years

Chipset: Intel B760

CPU Interface: Socket 1700

CPU Support: https://www.msi.com/Motherboard/MAG-B760-TOMAHAWK-WIFI/support#cpu

RAM Technology: DDR5 (Dual Channel)

RAM Slots: 4 x 288-pin

RAM Speeds: Up to DDR5 7000 (O.C.)

Max. Memory Support: 128GB

PCI Express 3.0 x16: 1

PCI Express 5.0 x16: 1

PCI Express 4.0 x1: 1

S-ATA 6Gb/s Port(s): 4

RAID: Raid 0/1/5/10

M.2 Socket(s): 2 x PCIe Gen 4.0 x4, 1 x PCIe Gen 4.0 x4/SATA

On-Board LAN: Realtek 2.5Gbps LAN

Wireless NIC: Wi-Fi 6E

Wireless Technology: The Wireless module is pre-installed in the M.2 (Key-E) slot, Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps, Supports 802.11 a/b/g
/ac/ax

Bluetooth: v5.3

On-Board Audio: Realtek ALC897 Codec, 7.1-Channel USB High Performance Audio, Supports S/PDIF output

On-Board Video: Processor with integrated graphics is required

Back USB 2.0 Port(s): 4

Back USB 3.2 Port(s) Type-A Gen 2: 4

Back USB 3.2 Port(s) Type-C Gen 2x2: 1

Back HDMI Port(s): 1

Back DisplayPort(s): 1

Back LAN Port(s): 1

Back Audio Jack(s): 5

Back S/PDIF Output Port(s): 1

Back Other Port(s): Wi-Fi / Bluetooth Antenna

24-pin ATX Power: 1

8-pin ATX Power: 2

USB 2.0 Header(s): 4

USB 3.2 Header(s) Gen 1: 2

USB 3.2 Header(s) Gen 2: 1

Front Panel Audio Connector: 1

TPM Header(s): 1

Internal Other Port(s): 1 x TBT connector, 1 x Tuning Controller connector, 2 x Addressable V2 RGB LED connector, 2 x RGB LED connector

Form Factor: Standard ATX

Product Width: 243.84mm

Product Length: 304.8mm

Package Width: 27cm

Package Length: 34cm

Package Height: 7cm

Gross Weight: 1.77Kg

Special Features: Lightning Gen 5: The latest PCIe 5.0 solution with up to 128GB/s bandwidth for maximum transfer speed., Latest DDR5 Memory: A huge step of DDR performance enhancement with the latest DDR5 memory and MSI Memory Boost technology., Wi-Fi 6E: The latest wireless solution supports 6GHz spectrum, MU-MIMO and BSS colour technology, delivering speeds up to 2400Mbps., 2.5G Network Solution: Featuring premium 2.5G LAN to deliver better network experience., 6 Layer PCB with 2oz Thickened Copper: An Enhanced PCB design provides higher performance and long-lasting system stability without any compromise., Lightning USB 20G: Built-in USB 3.2 Gen 2x2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1., M.2 Shield FROZR: M.2 thermal accessory keeps M.2 SSDs safe while preventing throttling, making them run faster., Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability, and compatibility., Core Boost: With premium layout and fully digital power design to support more cores and provide better performance., Audio Boost: Reward your ears with studio grade sound quality for the most immersive audio experience.

In the box: Motherboard; Quick Installation Guide; SATA Cable; EZ M.2 Clip; Cable Stickers; Wi-Fi Antenna
