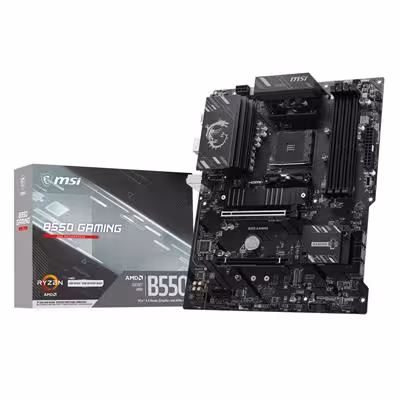

MSI B550 GAMING Motherboard Socket AM4 DDR4 PCIe 4.0

This motherboard features the AMD B550 chipset and Socket AM4 for versatile processor compatibility. It supports dual-channel DDR4 memory and includes PCIe 4.0 technology for high-speed storage and graphics performance. Integrated connectivity options include 1Gbps LAN and USB 10Gbps Type-C ports to facilitate rapid data transfer.

VIP Computers is the UK's largest independent distributor of PC components, peripherals and associated products. VIP specialises in providing components and software that system integrators need to build PCs. The VIP Group has seen strong and continued growth since 1990. VIP has over 20 years’ experience of providing a flexible and reliable distribution service to customers, ranging from small independent retailers and etailer to major high-street chain stores.

Package Type: Retail

Warranty: 3 Years

Chipset: AMD B550

CPU Interface: Socket AM4

CPU Support: https://www.msi.com/Motherboard/B550-GAMING/support#cpu

RAM Technology: DDR4 (Dual Channel)

RAM Slots: 4 x 288-pin

RAM Speeds: Up to DDR4 4866+ (O.C.)

Max. Memory Support: 128GB

PCI Express 3.0 x16: 1

PCI Express 4.0 x16: 1

PCI Express 3.0 x1: 1

S-ATA 6Gb/s Port(s): 6

M.2 Socket(s): 1 x PCIe Gen 4.0 x4/SATA, 1 x PCIe Gen 3.0 x4

LAN Speed: Realtek 8111H 1G LAN

On-Board Audio: Realtek ALC897, 7.1-Channel High Definition Audio

On-Board Video: Processor with integrated graphics is required

Back USB 2.0 Port(s): 4

Back USB 5Gbps Port(s) Type-A: 1

Back USB 10Gbps Port(s) Type-A: 1

Back USB 10Gbps Port(s) Type-C: 1

Back HDMI Port(s): 1

Back DisplayPort(s): 1

Back LAN Port(s): 1

Back Audio Jack(s): 3

Back Button(s): Flash BIOS

24-pin ATX Power: 1

8-pin ATX Power: 1

USB 2.0 Header(s): 4

USB 5Gbps Header(s): 3

COM Port Header(s): 1

TPM Header(s): 1

Internal Other Port(s): 2 x Addressable V2 RGB LED connector, 1 x RGB LED connector, 4 x EZ Debug LED

Form Factor: Standard ATX

Product Width: 243.84mm

Product Length: 304.8mm

Package Width: 26.8cm

Package Length: 34.2cm

Package Height: 8.6cm

Net Weight: 0.85Kg

Gross Weight: 1.03Kg

Special Features: Supports AMD Ryzen 5000 Series, 5000 G-Series, 4000 G-Series, and 3000 Series processors., Supports DDR4 Memory, up to 4800+MHz (OC)., Lightning-Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2, Front USB Type-C., EZ DIY: EZ Debug LED and EZ Mounting., Audio Boost: Reward your ears with studio-grade sound quality for the most immersive gaming experience., MSI Centre: A brand-new software which integrates all MSI exclusive tools with user-friendly user interface.

In the box: Motherboard; Quick Installation Guide; SATA Cable; M.2 Screw Package; IO Shield
