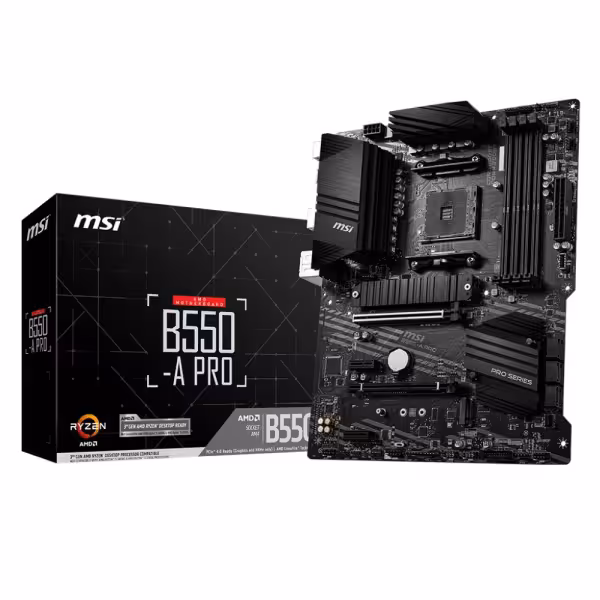

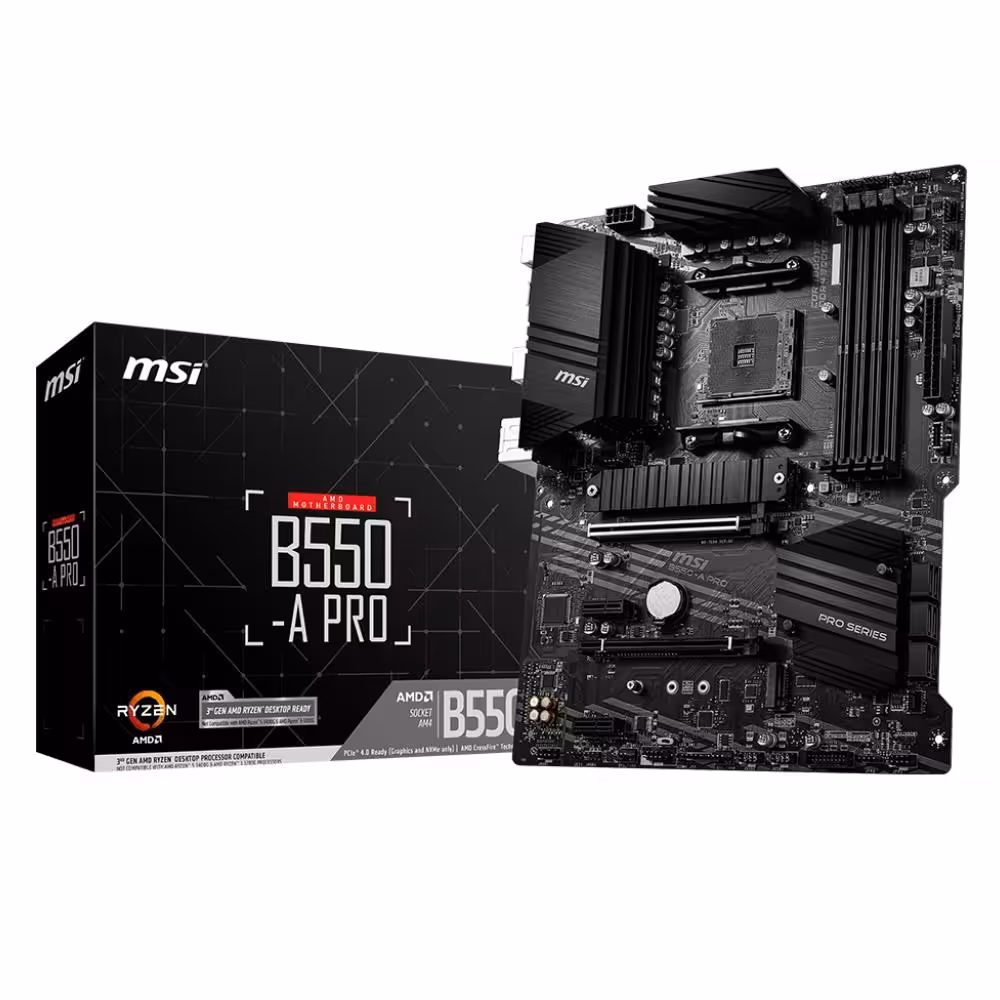

MSI B550-A PRO AMD Socket AM4 ATX Motherboard

This ATX motherboard features the AMD B550 chipset and Socket AM4, supporting high-performance DDR4 memory up to 4400MHz. It provides PCIe 4.0 technology for fast data transfer speeds alongside dual M.2 slots and six SATA 6Gb/s ports. The rear I/O includes USB 3.2 Gen 2 Type-C, HDMI, and DisplayPort outputs for versatile connectivity.

VIP Computers is the UK's largest independent distributor of PC components, peripherals and associated products. VIP specialises in providing components and software that system integrators need to build PCs. The VIP Group has seen strong and continued growth since 1990. VIP has over 20 years’ experience of providing a flexible and reliable distribution service to customers, ranging from small independent retailers and etailer to major high-street chain stores.

Package Type: Retail

Warranty: 3 Years

Chipset: AMD B550

CPU Interface: Socket AM4

CPU Support: https://www.msi.com/Motherboard/support/B550-A-PRO#support-cpu

RAM Technology: DDR4 (Dual Channel)

RAM Slots: 4 x 288-pin

RAM Speeds: Up to DDR4 4400+

Max. Memory Support: 128GB

PCI Express 3.0 x16: 1

PCI Express 4.0 x16: 1

PCI Express 3.0 x1: 2

S-ATA 6Gb/s Port(s): 6

RAID: Raid 0/1/10

M.2 Socket(s): 2

On-Board LAN: 1 x Realtek 8111H Gigabit LAN controller

On-Board Audio: Realtek ALC892 Codec

On-Board Video: Processor with integrated graphics is required

Back PS/2 Keyboard/Mouse Port: 1

Back USB 2.0 Port(s): 4

Back USB 3.2 Port(s) Type-A Gen 1: 2

Back USB 3.2 Port(s) Type-A Gen 2: 1

Back USB 3.2 Port(s) Type-C Gen 2: 1

Back HDMI Port(s): 1

Back DisplayPort(s): 1

Back LAN Port(s): 1

Back Audio Jack(s): 6

Back Button(s): Flash BIOS

24-pin ATX Power: 1

8-pin ATX Power: 1

USB 2.0 Header(s): 2

USB 3.2 Header(s) Gen 1: 2

Front Panel Audio Connector: 1

TPM Header(s): 1

Internal Other Port(s): 1 x 4-pin RGB LED connector, 2 x 3-pin RAINBOW LED connectors

Form Factor: Standard ATX

Product Width: 244mm

Product Length: 305mm

Package Width: 27cm

Package Length: 34cm

Package Height: 9cm

Gross Weight: 1.62Kg

Special Features: Core Boost: With premium layout and fully digital power design to support more cores and provide better performance., DDR4 Boost: Advanced technology to deliver pure data signals for the best gaming performance and stability., Lightning Gen4 solution: The latest Gen4 PCI-E and M.2 solution with up to 64GB/s bandwidth for maximum transfer speed., M.2 Shield FROZR: Strengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, making them run faster., 2oz Thickened Copper PCB: An enhanced PCB design improves heat dissipation and performance reliability., PCI-E Steel Armor: Protecting VGA cards against bending and EMI EZ Debug LED, Easiest way to troubleshoot., Audio Boost: Reward your ears with studio grade sound quality for the most immersive audio experience.

In the box: Motherboard; Manual; Quick Installation Guide; MSI Case Badge; 2 x SATA Cable; Support Disk; IO Shielding
