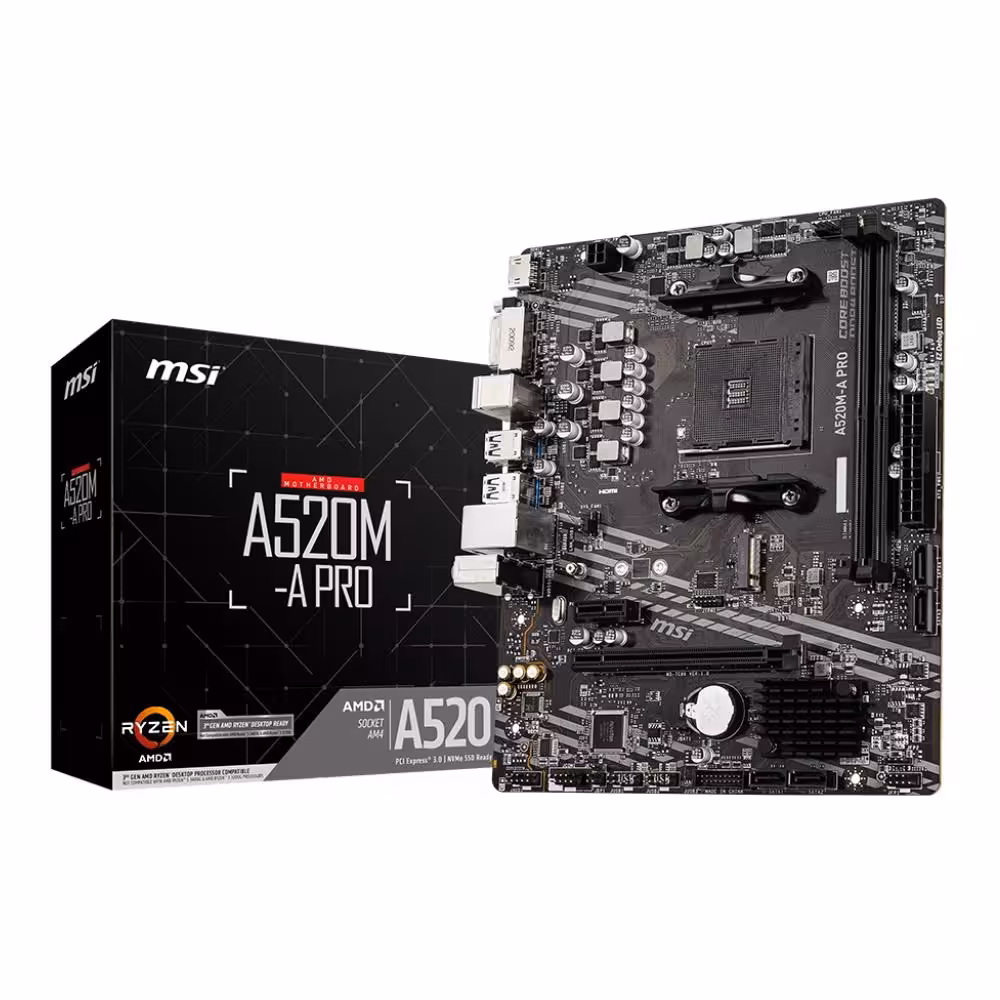

MSI A520M-A PRO AMD A520 Socket AM4 M-ATX Motherboard

Built on the AMD A520 chipset, this motherboard supports Socket AM4 processors and dual-channel DDR4 memory up to 64GB. It features a high-speed M.2 slot and USB 3.2 Gen 1 connectivity for efficient data transfer. Reliable performance is supported by a Gigabit LAN controller and integrated HDMI and DVI-D outputs.

VIP Computers is the UK's largest independent distributor of PC components, peripherals and associated products. VIP specialises in providing components and software that system integrators need to build PCs. The VIP Group has seen strong and continued growth since 1990. VIP has over 20 years’ experience of providing a flexible and reliable distribution service to customers, ranging from small independent retailers and etailer to major high-street chain stores.

UPC: 824142224007

Package Type: Retail

Warranty: 3 Years

Chipset: AMD A520

CPU Interface: Socket AM4

CPU Support: https://www.msi.com/Motherboard/support/A520M-A-PRO#support-cpu

RAM Technology: DDR4 (Dual Channel)

RAM Slots: 2 x 288-pin

RAM Speeds: Up to DDR4 4600+ (O.C.)

Max. Memory Support: 64GB

PCI Express 3.0 x16: 1

PCI Express 3.0 x1: 1

S-ATA 6Gb/s Port(s): 4

RAID: Raid 0/1/10

M.2 Socket(s): 1

On-Board LAN: 1 x Realtek RTL8111H Gigabit LAN controller

On-Board Audio: Realtek ALC892 Codec

On-Board Video: Processor with integrated graphics is required

Back PS/2 Keyboard/Mouse Port: 1

Back USB 2.0 Port(s): 2

Back USB 3.2 Port(s) Type-A Gen 1: 4

Back DVI-D Port(s): 1

Back HDMI Port(s): 1

Back LAN Port(s): 1

Back Audio Jack(s): 3

24-pin ATX Power: 1

8-pin ATX Power: 1

USB 2.0 Header(s): 2

USB 3.2 Header(s) Gen 1: 1

Front Panel Audio Connector: 1

TPM Header(s): 1

Form Factor: Micro ATX

Product Width: 200mm

Product Length: 236mm

Package Width: 26cm

Package Length: 27cm

Package Height: 5.5cm

Gross Weight: 1.66Kg

Special Features: Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe, based SSDs., Core Boost: With premium layout and digital power design to support more, cores and provide better performance., DDR4 Boost: Advanced technology to deliver pure data signals for the, best performance and stability., 2oz Thickened Copper PCB: An enhanced PCB design improves heat, dissipation and performance reliability., Audio Boost: Reward your ears with studio grade sound quality., Dragon Centre: A brand new software which integrates all MSI exclusive tools, with user friendly user interface

In the box: Motherboard; MSI Case Bage; Quick Installation; 2 x SATA Cables; IO Shield; Support Disk
