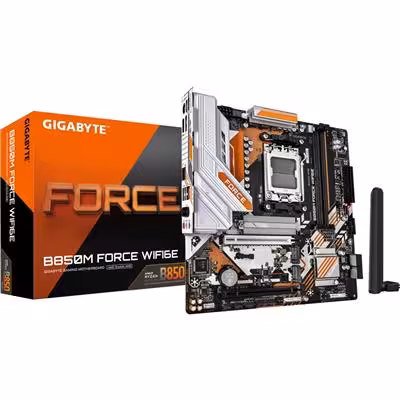

Gigabyte B850M FORCE WIFI6E AM5 mATX Motherboard DDR5

This Micro-ATX motherboard features the AMD B850 chipset and supports Socket AM5 processors with dual-channel DDR5 memory. Connectivity includes integrated Wi-Fi 6E, Bluetooth 5.3, and a 2.5GbE LAN port for high-speed networking. Expansion is provided by PCIe 5.0 and PCIe 4.0 slots, alongside dedicated Gen 5 and Gen 4 M.2 sockets for fast storage performance.

VIP Computers is the UK's largest independent distributor of PC components, peripherals and associated products. VIP specialises in providing components and software that system integrators need to build PCs. The VIP Group has seen strong and continued growth since 1990. VIP has over 20 years’ experience of providing a flexible and reliable distribution service to customers, ranging from small independent retailers and etailer to major high-street chain stores.

Package Type: Retail

Warranty: 3 Years

BIOS: 1 x 256 Mbit flash, Use of licensed AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Chipset: AMD B850

CPU Interface: Socket AM5

CPU Support: https://www.gigabyte.com/Motherboard/B850M-FORCE-WIFI6E-rev-12/support#Support-Cpu-Support

RAM Technology: DDR5 (Dual Channel)

RAM Slots: 2 x 288-pin

RAM Speeds: Up to DDR5 9600 (O.C.)

Max. Memory Support: 128GB

PCI Express 4.0 x16: 1

PCI Express 5.0 x16: 1

S-ATA 6Gb/s Port(s): 4

RAID: Raid 0/1/5/10

M.2 Socket(s): 1 x PCIe Gen 5.0 x4, 2 x PCIe Gen 4.0 x4

LAN Speed: Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Wireless NIC: Wi-Fi 6E

Wireless Technology: WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands

Bluetooth: v5.3

On-Board Audio: Realtek Audio CODEC

On-Board Video: Processor with integrated graphics is required

Back PS/2 Keyboard/Mouse Port: 1

Back USB 2.0 Port(s): 2

Back USB 3.2 Port(s) Type-A Gen 1: 1

Back USB 3.2 Port(s) Type-C Gen 1: 1

Back HDMI Port(s): 1

Back DisplayPort(s): 1

Back LAN Port(s): 1

Back Audio Jack(s): 3

Back Other Port(s): 2 x Antenna connectors (1T1R)

24-pin ATX Power: 1

8-pin ATX Power: 1

USB 2.0 Header(s): 2

USB 3.2 Header(s) Gen 1: 1

Front Panel Audio Connector: 1

TPM Header(s): 1

Internal Other Port(s): 3 x Addressable RGB Gen2 LED strip headers, 1 x RGB LED strip header

Internal Button(s): 1 x Q-Flash Plus

Form Factor: Micro ATX

Product Width: 244mm

Product Length: 244mm

Package Width: 27cm

Package Length: 27cm

Package Height: 7cm

Net Weight: 0.85Kg

Gross Weight: 1.22Kg

Special Features: X3D Turbo Mode to unleash new era gaming performance., AMD Socket AM5: Supports AMD Ryzen 9000/8000/ 7000 Series Processors., Digital 8+2+2 phases VRM solution., Dual Channel DDR5: 2 x DIMMs with AMD EXPO Memory Module Support., WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation., EZ-Latch: PCIe x16 Slot with Quick Release Design., Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW., Ultra-Fast Storage: 3 x M.2 slots, including 1x PCIe 5.0 x4., Fast Networking: 802.11ax Wi-Fi6E and 2.5GbE LAN., Extended Connectivity: DP, HDMI.

In the box: Motherboard; Manual; Quick Installation Guide; 1 x Antenna; 2 x SATA cables; 1 x G Connector 5; One pack of M.2 thick/thin rubber pads
