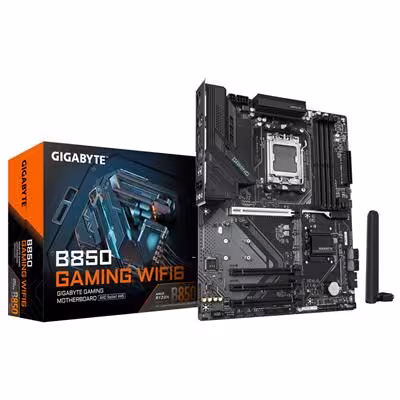

Gigabyte B850 GAMING WF6 Motherboard Socket AM5 DDR5

Designed for the AMD AM5 socket, this motherboard supports DDR5 memory technology and PCIe 5.0 for high-performance components. Integrated Wi-Fi 6 and Bluetooth 5.3 provide stable wireless connectivity alongside a Realtek GbE LAN port. It includes multiple M.2 slots and USB 3.2 Gen 2 ports to accommodate high-speed storage and peripherals.

VIP Computers is the UK's largest independent distributor of PC components, peripherals and associated products. VIP specialises in providing components and software that system integrators need to build PCs. The VIP Group has seen strong and continued growth since 1990. VIP has over 20 years’ experience of providing a flexible and reliable distribution service to customers, ranging from small independent retailers and etailer to major high-street chain stores.

UPC: 889523046227

Package Type: Retail

Warranty: 3 Years

BIOS: 1 x 256 Mbit flash, Use of licensed AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Chipset: AMD B850

CPU Interface: Socket AM5

CPU Support: https://www.gigabyte.com/uk/Motherboard/B850-GAMING-WIFI6/support#support-cpu

RAM Technology: DDR5 (Dual Channel)

RAM Slots: 4 x 288-pin

RAM Speeds: Up to DDR5 8200 (O.C.)

Max. Memory Support: 256GB

PCI Express 3.0 x16: 3

PCI Express 5.0 x16: 1

S-ATA 6Gb/s Port(s): 4

RAID: Raid 0/1/5/10

M.2 Socket(s): 1 x PCIe Gen 5.0 x4, 2 x PCIe Gen 4.0 x4

LAN Speed: Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)

Wireless NIC: Wi-Fi 6

Wireless Technology: WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz carrier frequency bands

Bluetooth: v5.3

On-Board Audio: Realtek Audio CODEC, High Definition Audio, 2/4/5.1/7.1-channel

On-Board Video: Processor with integrated graphics is required

Back PS/2 Keyboard/Mouse Port: 1

Back USB 2.0 Port(s): 4

Back USB 3.2 Port(s) Type-A Gen 1: 2

Back USB 3.2 Port(s) Type-A Gen 2: 2

Back HDMI Port(s): 1

Back DisplayPort(s): 1

Back LAN Port(s): 1

Back Audio Jack(s): 3

Back Other Port(s): 2 x Antenna connectors (2T2R)

Back Button(s): 1 x Q-Flash Plus

24-pin ATX Power: 1

8-pin ATX Power: 1

4-pin ATX Power: 1

USB 2.0 Header(s): 2

USB 3.2 Header(s) Gen 1: 2

Front Panel Audio Connector: 1

TPM Header(s): 1

Internal Other Port(s): 3 x Addressable RGB Gen2 LED strip headers, 1 x RGB LED strip header

Form Factor: Standard ATX

Product Width: 244mm

Product Length: 305mm

Package Width: 27cm

Package Length: 34cm

Package Height: 8cm

Gross Weight: 1.52Kg

Special Features: X3D Turbo Mode: Unleash new era gaming performance, DDR5 OC up to 8200MT/s, AMD Socket AM5: Supports AMD Ryzen 9000 / 8000 / 7000 Series Processors, Digital 6+2+2 phases VRM solution, Dual Channel DDR5: 4 x DIMMs with AMD EXPO Memory Module Support, WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation, PCIe EZ-Latch Plus: PCIe slots with Quick Release Design, Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW., Ultra-Fast Storage: 3 x M.2 slots, including PCIe 5.0x4 slot, Efficient Thermal: VRM Thermal Armor Advanced, Fast Networking: GbE LAN and Wi-Fi 6 802.11ax, Extended Connectivity: HDMI, Displayport

In the box: Motherboard; Manual; Quick Installation Guide; 1 x Antenna; 2 x SATA cables; 1 x G Connector; M.2 screws; 5 One packs of M.2 thick/thin rubber pad
