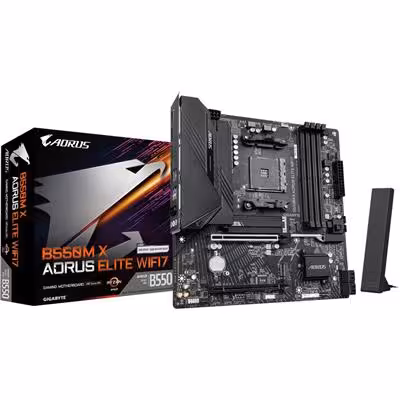

Gigabyte B550M X AORUS ELITE WIFI7 AMD B550 Socket AM4 Motherboard
Brand: Gigabyte Quick Find: 77196£115.32
Overview
This Micro ATX motherboard supports AM4 processors and features high-speed Wi-Fi 7 connectivity alongside 2.5GbE LAN. It includes four DDR4 RAM slots and PCIe 4.0 architecture for optimised storage and graphics performance. Back-panel options provide versatile connectivity via HDMI, DisplayPort, and USB 3.2 Type-C ports.
Read More
Specifications
| Specification | Value |
|---|---|
| Package Type | Retail |
| Warranty | 3 Years |
| BIOS | 1 x 128 Mbit flash, Use of licensed AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Chipset | AMD B550 |
| CPU Interface | Socket AM4 |
| CPU Support | https://www.gigabyte.com/uk/Motherboard/B550M-X-AORUS-ELITE/support#Support-Cpu-Support |
| RAM Technology | DDR4 (Dual Channel) |
| RAM Slots | 4 x 288-pin |
| RAM Speeds | Up to DDR4 3200 |
| Max. Memory Support | 128GB |
| PCI Express 3.0 x16 | 1 |
| PCI Express 4.0 x16 | 1 |
| S-ATA 6Gb/s Port(s) | 4 |
| RAID | Raid 0/1/10 |
| M.2 Socket(s) | 1 x PCIe Gen 4.0 x4/SATA, 1 x PCIe Gen 3.0 x4/SATA |
| LAN Speed | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless NIC | Wi-Fi 7 |
| Wireless Technology | 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands |
| Bluetooth | v5.4 |
| On-Board Audio | Realtek ALC1220 CODEC, High Definition Audio, 2/4/5.1/7.1-channel |
| On-Board Video | Processor with integrated graphics is required |
| Back USB 2.0 Port(s) | 2 |
| Back USB 3.2 Port(s) Type-A Gen 1 | 4 |
| Back USB 3.2 Port(s) Type-C Gen 1 | 1 |
| Back HDMI Port(s) | 1 |
| Back DisplayPort(s) | 1 |
| Back LAN Port(s) | 1 |
| Back Audio Jack(s) | 3 |
| Back Button(s) | 1 x Q-Flash Plus |
| 24-pin ATX Power | 1 |
| 8-pin ATX Power | 1 |
| USB 2.0 Header(s) | 1 |
| USB 3.2 Header(s) Gen 1 | 2 |
| COM Port Header(s) | 1 |
| Front Panel Audio Connector | 1 |
| TPM Header(s) | 1 |
| Internal Other Port(s) | 3 x addressable RGB Gen2 LED strip headers, 1 x RGB LED strip header |
| Form Factor | Micro ATX |
| Product Width | 244mm |
| Product Length | 244mm |
| Package Width | 26.80cm |
| Package Length | 27cm |
| Package Height | 6.8cm |
| Net Weight | 1.09Kg |
| Gross Weight | 1.18Kg |
| Special Features | AMD Socket AM4: Supports AMD Ryzen 5000 / 4000 / 3000 Series Processors., Hybrid Digital twin 8+2 phases VRM solution., Dual Channel DDR4: 4*DIMMs with XMP Memory Module Support., WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation., PCIe EZ-Latch Plus: PCIe slot with Quick Release and Screwless Design., Ultra-Fast Storage: 2 x M.2 slots, including 1 x PCIe 4.0 x4., Efficient Thermal: VRM Thermal Armor Advanced and M.2 Thermal Guard., Fast Networking: 2.5GbE LAN and Wi-Fi 7., Exte |
What's in the box
- Motherboard
- Manual
- Quick Installation Guide
- 1 x Antenna
- 2 x SATA cables
- M.2 screw
