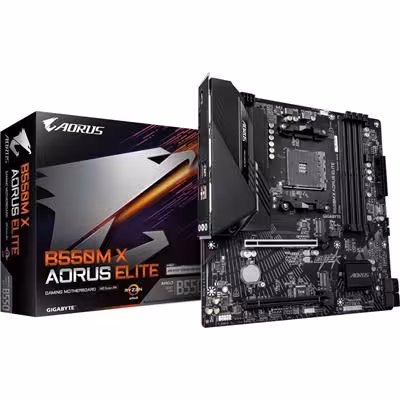

Gigabyte B550M X AORUS ELITE AMD B550 Socket AM4 Motherboard with 2.5GbE LAN

Compatible with Socket AM4 processors, this board features the AMD B550 chipset and supports up to 128GB of dual-channel DDR4 memory. It offers high-speed connectivity via PCIe 4.0 slots and a 2.5GbE LAN chip for stable networking performance. Integrated outputs include HDMI and DisplayPort, while the Q-Flash Plus button allows for BIOS updates.

VIP Computers is the UK's largest independent distributor of PC components, peripherals and associated products. VIP specialises in providing components and software that system integrators need to build PCs. The VIP Group has seen strong and continued growth since 1990. VIP has over 20 years’ experience of providing a flexible and reliable distribution service to customers, ranging from small independent retailers and etailer to major high-street chain stores.

Package Type: Retail

Warranty: 3 Years

BIOS: 1 x 128 Mbit flash, Use of licensed AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Chipset: AMD B550

CPU Interface: Socket AM4

CPU Support: https://www.gigabyte.com/uk/Motherboard/B550M-X-AORUS-ELITE/support#Support-Cpu-Support

RAM Technology: DDR4 (Dual Channel)

RAM Slots: 4 x 288-pin

RAM Speeds: Up to DDR4 3200

Max. Memory Support: 128GB

PCI Express 3.0 x16: 1

PCI Express 4.0 x16: 1

S-ATA 6Gb/s Port(s): 4

RAID: Raid 0/1/10

M.2 Socket(s): 1 x PCIe Gen 4.0 x4/SATA, 1 x PCIe Gen 3.0 x4/SATA

LAN Speed: Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

On-Board Audio: Realtek ALC1220 CODEC, High Definition Audio, 2/4/5.1/7.1-channel

On-Board Video: Processor with integrated graphics is required

Back USB 2.0 Port(s): 2

Back USB 3.2 Port(s) Type-A Gen 1: 4

Back USB 3.2 Port(s) Type-C Gen 1: 1

Back HDMI Port(s): 1

Back DisplayPort(s): 1

Back LAN Port(s): 1

Back Audio Jack(s): 3

Back Button(s): 1 x Q-Flash Plus

24-pin ATX Power: 1

8-pin ATX Power: 1

USB 2.0 Header(s): 1

USB 3.2 Header(s) Gen 1: 2

COM Port Header(s): 1

Front Panel Audio Connector: 1

TPM Header(s): 1

Internal Other Port(s): 3 x addressable RGB Gen2 LED strip headers, 1 x RGB LED strip header

Form Factor: Micro ATX

Product Width: 244mm

Product Length: 244mm

Package Width: 26.80cm

Package Length: 27cm

Package Height: 6.8cm

Net Weight: 1.04Kg

Gross Weight: 1.13Kg

Special Features: AMD Socket AM4: Supports AMD Ryzen 5000 / 4000 / 3000 Series Processors., Hybrid Digital twin 8+2 phases VRM solution., Dual Channel DDR4: 4 x DIMMs with XMP Memory Module Support., PCIe EZ-Latch: PCIe slot with Quick Release and Screwless Design., Ultra-Fast Storage: 2 x M.2 slots, including 1x PCIe 4.0 x4., Efficient Thermal: VRM Thermal Armor Advanced., Fast Networking: 2.5GbE LAN., Extended Connectivity: HDMI, DisplayPort.

In the box: Motherboard; Manual; Quick Installation Guide; 2 x SATA cables; M.2 screw
