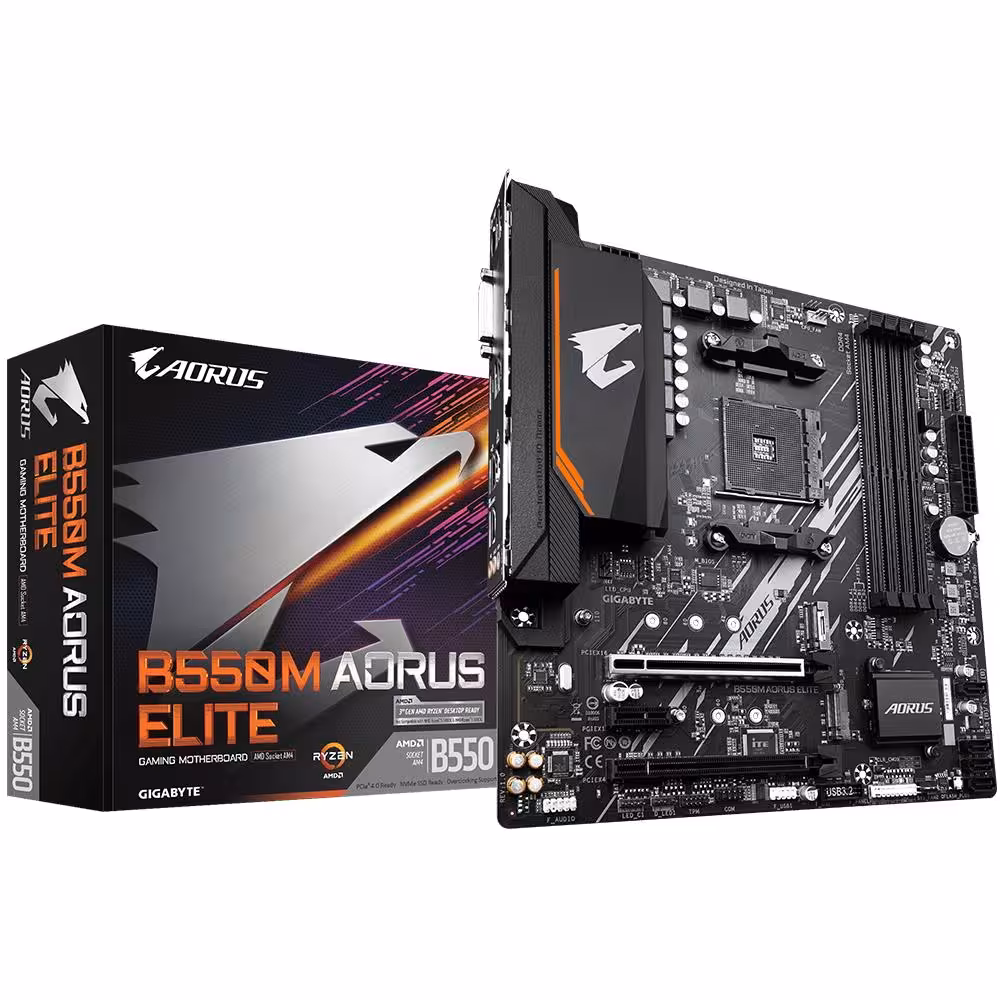

Gigabyte B550M AORUS ELITE AMD B550 Socket AM4 Micro ATX Motherboard

This AMD B550 chipset motherboard supports Socket AM4 processors and features dual-channel DDR4 memory slots. It provides high-speed connectivity with PCIe 4.0 support, dual M.2 slots, and Realtek Gigabit LAN. The Micro ATX board includes HDMI and DVI-D outputs for integrated graphics and comes with a 3-year warranty.

VIP Computers is the UK's largest independent distributor of PC components, peripherals and associated products. VIP specialises in providing components and software that system integrators need to build PCs. The VIP Group has seen strong and continued growth since 1990. VIP has over 20 years’ experience of providing a flexible and reliable distribution service to customers, ranging from small independent retailers and etailer to major high-street chain stores.

Package Type: Retail

Warranty: 3 Years

BIOS: 1 x 256 Mbit flash, Use of licensed AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Chipset: AMD B550

CPU Interface: Socket AM4

CPU Support: https://www.gigabyte.com/Motherboard/B550M-AORUS-ELITE-rev-10/support#support-cpu

RAM Technology: DDR4 (Dual Channel)

RAM Slots: 4 x 288-pin

RAM Speeds: Up to DDR4 4733 (O.C.)

Max. Memory Support: 128GB

PCI Express 3.0 x16: 1

PCI Express 4.0 x16: 1

PCI Express 3.0 x1: 1

S-ATA 6Gb/s Port(s): 4

RAID: Raid 0/1/10

M.2 Socket(s): 2

LAN Speed: Realtek GbE LAN chip (1000 Mbit/100 Mbit)

On-Board Audio: Realtek ALC887 codec

On-Board Video: Processor with integrated graphics is required

Back PS/2 Keyboard/Mouse Port: 1

Back USB 2.0 Port(s): 4

Back USB 3.2 Port(s) Type-A Gen 1: 4

Back DVI-D Port(s): 1

Back HDMI Port(s): 1

Back LAN Port(s): 1

Back Audio Jack(s): 3

24-pin ATX Power: 1

8-pin ATX Power: 1

USB 2.0 Header(s): 1

USB 3.1 Header(s) Gen 1: 1

COM Port Header(s): 1

TPM Header(s): 1

Internal Other Port(s): 2 x Addressable LED Strip Headers, 2 x RGB LED Strip Headers, 1 x CPU Cooler LED Strip/RGB LED Strip Header

Internal Button(s): 1 x Q-Flash Plus

Form Factor: Micro ATX

Product Width: 244mm

Product Length: 244mm

Package Width: 27cm

Package Length: 27.5cm

Package Height: 7cm

Gross Weight: 1.14Kg

Special Features: Supports 3rd Gen AMD Ryzen Processors., Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs., 5+3 Phases Pure Digital VRM Solution with Low RDS(on) MOSFETs., Ultra Durable PCIe 4.0 Ready x16 Slot., Dual Ultra-Fast NVMe PCIe 4.0/3.0 M.2 Connectors., High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality., GIGABYTE Exclusive 8118 Gaming GbE LAN., Rear HDMI and DVI Support., RGB FUSION 2.0 Supports Addressable LED and RGB LED Strips., Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP., Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card., Anti-Sulfur Resistors Design.

In the box: B550M AORUS ELITE Motherboard; Manual; Support Disk; 2 x SATA Cables
