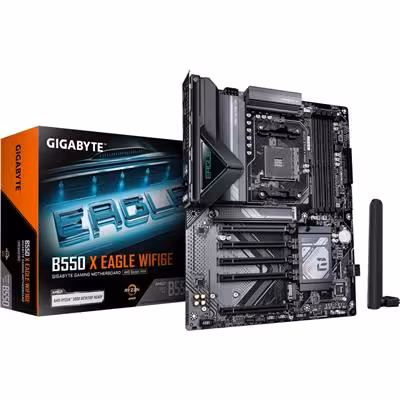

Gigabyte B550 X EAGLE WIFI6E AMD Socket AM4 Motherboard DDR4, 2.5GbE LAN

This AMD B550 chipset motherboard supports Socket AM4 processors and features four DDR4 slots for up to 128GB of memory. It provides high-speed wireless connectivity via Wi-Fi 6E and Bluetooth 5.3 alongside a 2.5GbE LAN port. The board includes PCIe 4.0 support and dual M.2 sockets for efficient data transfer and storage performance.

VIP Computers is the UK's largest independent distributor of PC components, peripherals and associated products. VIP specialises in providing components and software that system integrators need to build PCs. The VIP Group has seen strong and continued growth since 1990. VIP has over 20 years’ experience of providing a flexible and reliable distribution service to customers, ranging from small independent retailers and etailer to major high-street chain stores.

Package Type: Retail

Warranty: 3 Years

BIOS: 1 x 128 Mbit flash, Use of licensed AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Chipset: AMD B550

CPU Interface: Socket AM4

CPU Support: https://www.gigabyte.com/Motherboard/B550-X-EAGLE-WIFI6E/support#Support-Cpu-Support

RAM Technology: DDR4 (Dual Channel)

RAM Slots: 4 x 288-pin

RAM Speeds: Up to DDR4 3200

Max. Memory Support: 128GB

PCI Express 3.0 x16: 4

PCI Express 4.0 x16: 1

S-ATA 6Gb/s Port(s): 4

RAID: Raid 0/1/10

M.2 Socket(s): 1 x PCIe Gen 4.0 x4, 1 x PCIe Gen 3.0 x4

LAN Speed: Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Wireless NIC: Wi-Fi 6E

Wireless Technology: WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands

Bluetooth: v5.3

On-Board Audio: Realtek Audio CODEC, High Definition Audio, 2/4/5.1/7.1-channel

On-Board Video: Processor with integrated graphics is required

Back USB 2.0 Port(s): 4

Back USB 3.2 Port(s) Type-A Gen 1: 2

Back USB 3.2 Port(s) Type-C Gen 1: 1

Back USB 3.2 Port(s) Type-A Gen 2: 1

Back HDMI Port(s): 1

Back LAN Port(s): 1

Back Audio Jack(s): 3

Back Button(s): 1 x Q-Flash Plus

Internal I/O Connectors: 2 x Antenna Connectors (1T1R)

24-pin ATX Power: 1

8-pin ATX Power: 1

USB 2.0 Header(s): 2

USB 3.2 Header(s) Gen 1: 1

Front Panel Audio Connector: 1

Internal Other Port(s): 3 x addressable RGB Gen2 LED strip headers, 1 x RGB LED strip header

Form Factor: Standard ATX

Product Width: 244mm

Product Length: 305mm

Package Width: 29.4cm

Package Length: 34.5cm

Package Height: 8cm

Net Weight: 2.05Kg

Gross Weight: 2.46Kg

Special Features: AMD Socket AM4: Supports AMD Ryzen 5000 / 4000 / 3000 Series Processors, Hybrid Digital twin 8+2 phases VRM solution, Dual Channel DDR4: 4 x DIMMs with XMP Memory Module Support, WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation, PCIe EZ-Latch: PCIe slot with Quick Release & Screwless Design, M.2 EZ-Latch Plus/ Click: M.2 slots and heatsinks with screwless design, Ultra-Fast Storage: 2 x M.2 slots, including 1x PCIe 4.0 x4, Efficient Thermal: VRM Thermal Armor Advanced and M.2 Thermal Guard, Fast Networking: 2.5GbE LAN and Wi-Fi 6E, Extended Connectivity: HDMI

In the box: Motherboard; Manual; Quick Installation Guide; 1 x Antenna; 2 x SATA cables; M.2 screws; One pack of M.2 thick/thin rubber pads
