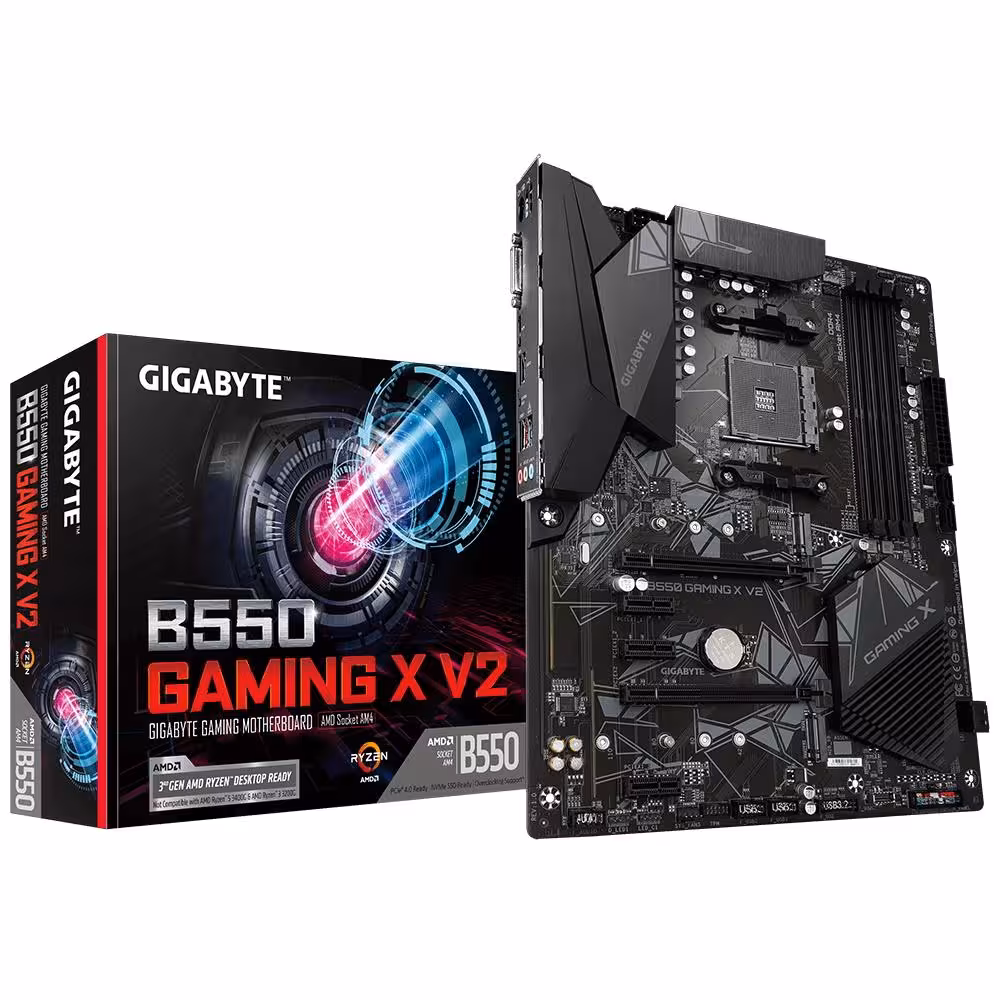

Gigabyte B550 Gaming X V2 AMD Socket AM4 DDR4 Motherboard

Designed for the AMD B550 chipset, this motherboard supports Socket AM4 processors and includes four dual-channel DDR4 memory slots. It features a PCIe 4.0 x16 slot for high-bandwidth graphics and dual M.2 connectors for fast storage solutions. The integrated Q-Flash Plus button allows for BIOS updates without needing to install a CPU or memory.

VIP Computers is the UK's largest independent distributor of PC components, peripherals and associated products. VIP specialises in providing components and software that system integrators need to build PCs. The VIP Group has seen strong and continued growth since 1990. VIP has over 20 years’ experience of providing a flexible and reliable distribution service to customers, ranging from small independent retailers and etailer to major high-street chain stores.

UPC: 889523024102

Package Type: Retail

Warranty: 3 Years

BIOS: 1 x 256 Mbit flash, Use of licensed AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Chipset: AMD B550

CPU Interface: Socket AM4

CPU Support: https://www.gigabyte.com/Ajax/SupportFunction/Getcpulist?Type=Product&Value=7498

RAM Technology: DDR4 (Dual Channel)

RAM Slots: 4 x 288-pin

RAM Speeds: Up to DDR4 4733 (O.C.)

Max. Memory Support: 128GB

PCI Express 3.0 x16: 1

PCI Express 4.0 x16: 1

PCI Express 3.0 x1: 3

S-ATA 6Gb/s Port(s): 4

RAID: Raid 0/1/10

M.2 Socket(s): 2

On-Board LAN: Realtek GbE LAN chip (1000 Mbit/100 Mbit)

On-Board Audio: Realtek GbE LAN chip (1000 Mbit/100 Mbit)

On-Board Video: Processor with integrated graphics is required

Back PS/2 Keyboard/Mouse Port: 1

Back USB 2.0 Port(s): 2

Back USB 3.2 Port(s) Type-A Gen 1: 3

Back USB 3.2 Port(s) Type-A Gen 2: 1

Back DVI-D Port(s): 1

Back HDMI Port(s): 1

Back LAN Port(s): 1

Back Audio Jack(s): 3

Back Button(s): 1 x Q-Flash Plus

24-pin ATX Power: 1

8-pin ATX Power: 1

USB 2.0 Header(s): 2

USB 3.2 Header(s) Gen 1: 2

Front Panel Audio Connector: 1

TPM Header(s): 1

Internal Other Port(s): 2 x addressable LED strip headers, 2 x RGB LED strip headers, 1 x CPU cooler LED strip/RGB LED strip header

Form Factor: Standard ATX

Product Width: 244mm

Product Length: 305mm

Package Width: 26cm

Package Length: 33cm

Package Height: 7cm

Gross Weight: 1.23Kg

Special Features: Supports AMD Ryzen 5000 Series / 3rd Gen Ryzen and 3rd Gen Ryzen with Radeon™ Graphics Processors., Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs., 10+3 Phases Digital Twin Power Design with Low RDS(on) MOSFETs., Ultra-Durable PCIe 4.0 Ready x16 Slot., Dual Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 Connectors., GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management., Front USB 3.2 Gen1 Type-C and HDMI and DVI-D for Multiple Display., High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality., RGB FUSION 2.0 support Addressable LED and RGB LED Strips., Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP., Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card., Anti-Sulphur Resistors Design.

In the box: B550 GAMING X V2 motherboard; Manual; Support Disk; 2 x SATA cables
