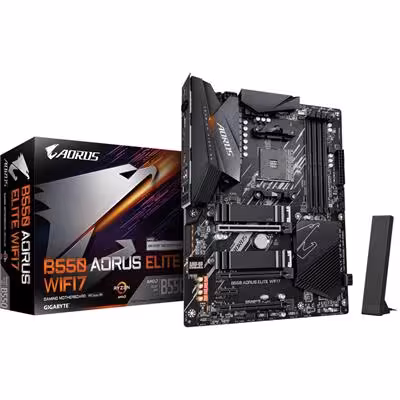

Gigabyte B550 AORUS ELITE WIFI7 AMD Socket AM4 DDR4 Motherboard

This AMD B550 chipset motherboard supports Socket AM4 processors and features four DDR4 slots for high-speed memory performance. Integrated Wi-Fi 7 and Bluetooth 5.4 provide advanced wireless connectivity alongside a Realtek 2.5GbE LAN port. The board includes PCIe 4.0 support and dual M.2 slots for high-performance storage.

VIP Computers is the UK's largest independent distributor of PC components, peripherals and associated products. VIP specialises in providing components and software that system integrators need to build PCs. The VIP Group has seen strong and continued growth since 1990. VIP has over 20 years’ experience of providing a flexible and reliable distribution service to customers, ranging from small independent retailers and etailer to major high-street chain stores.

Package Type: Retail

Warranty: 3 Years

BIOS: 1 x 128 Mbit flash, Use of licensed AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Chipset: AMD B550

CPU Interface: Socket AM4

CPU Support: https://www.gigabyte.com/uk/Motherboard/B550-AORUS-ELITE-WIFI7/support#Support-Cpu-Support

RAM Technology: DDR4 (Dual Channel)

RAM Slots: 4 x 288-pin

RAM Speeds: Up to DDR4 4733 (O.C.)

Max. Memory Support: 128GB

PCI Express 3.0 x16: 2

PCI Express 4.0 x16: 1

PCI Express 3.0 x1: 1

S-ATA 6Gb/s Port(s): 4

RAID: Raid 0/1/10

M.2 Socket(s): 1 x PCIe Gen 4.0 x4/SATA, 1 x PCIe Gen 3.0 x4/SATA

LAN Speed: Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Wireless NIC: Wi-Fi 7

Wireless Technology: 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands

Bluetooth: v5.4

On-Board Audio: Realtek Audio CODEC, High Definition Audio, 2/4/5.1/7.1-channel, Support for S/PDIF Out

On-Board Video: Processor with integrated graphics is required

Back USB 2.0 Port(s): 2

Back USB 3.2 Port(s) Type-A Gen 1: 3

Back USB 3.2 Port(s) Type-A Gen 2: 2

Back HDMI Port(s): 1

Back DisplayPort(s): 1

Back LAN Port(s): 1

Back Audio Jack(s): 5

Back S/PDIF Output Port(s): 1

Back Other Port(s): 2 x Antenna Connectors (2T2R)

Back Button(s): 1 x Q-Flash Plus

24-pin ATX Power: 1

8-pin ATX Power: 1

USB 2.0 Header(s): 2

USB 3.2 Header(s) Gen 2: 2

Front Panel Audio Connector: 1

Internal Other Port(s): 1 x CPU cooler LED strip/RGB LED strip header, 2 x addressable RGB Gen2 LED strip headers, 2 x RGB LED strip headers

Form Factor: Standard ATX

Product Width: 244mm

Product Length: 305mm

Package Width: 27cm

Package Length: 33.5cm

Package Height: 8cm

Net Weight: 1.68Kg

Gross Weight: 1.92Kg

Special Features: Supports AMD Ryzen 5000 Series/ Ryzen 5000 G-Series/ Ryzen 4000 G-Series/ Ryzen 3000 and Ryzen 3000 G-Series Processors., Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs., 12+2 Phases Digital Twin Power Design with 50A DrMOS., Advanced Thermal Design with Enlarged Surface Heatsinks., Ultra Durable PCIe 4.0 x16 Slot., Dual Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Dual Thermal Guards., Fast Networking: 2.5GbE LAN and Wi-Fi 7 with directional Ultra-high gain antenna., WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation., High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality., Blazing Fast 2.5GbE LAN with Bandwidth Management., Front USB 3.2 Gen1 Type-C and DisplayPort and HDMI for Multiple Display., RGB FUSION 2.0 Supports Addressable LED and RGB LED Strips., Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP., Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card., Pre-installed IO Shield for Easy and Quick Installation.

In the box: Motherboard; Manual; 1 x Antenna; 2 x SATA cables; One G Connector
