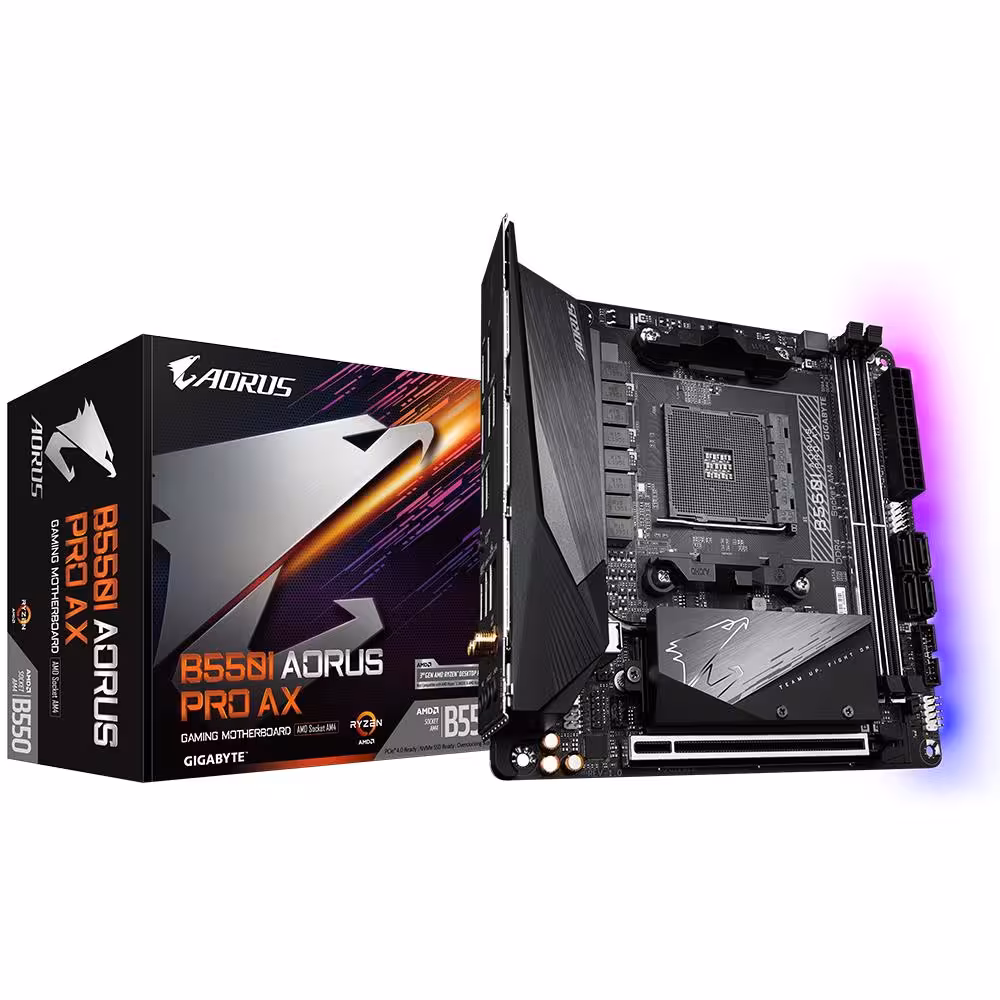

Gigabyte AORUS B550I PRO AX AMD B550 Socket AM4 Mini-ITX Motherboard Wi-Fi 6

This Mini-ITX motherboard features the AMD B550 chipset and supports Socket AM4 processors. It provides high-speed connectivity via integrated Wi-Fi 6 and a 2.5GbE LAN chip. The design includes PCIe 4.0 support, dual M.2 slots and accommodates up to 64GB of DDR4 memory.

VIP Computers is the UK's largest independent distributor of PC components, peripherals and associated products. VIP specialises in providing components and software that system integrators need to build PCs. The VIP Group has seen strong and continued growth since 1990. VIP has over 20 years’ experience of providing a flexible and reliable distribution service to customers, ranging from small independent retailers and etailer to major high-street chain stores.

Package Type: Retail

Warranty: 3 Years

BIOS: 1 x 256 Mbit flash, Use of licensed AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Chipset: AMD B550

CPU Interface: Socket AM4

CPU Support: https://www.gigabyte.com/Motherboard/B550I-AORUS-PRO-AX-rev-10/support#support-cpu

RAM Technology: DDR4 (Dual Channel)

RAM Slots: 2 x 288-pin

RAM Speeds: Up to DDR4 4866 (O.C.)

Max. Memory Support: 64GB

PCI Express 4.0 x16: 1

PCI Express 4.0 x1: 1

S-ATA 6Gb/s Port(s): 4

RAID: Raid 0/1/10

M.2 Socket(s): 2

On-Board LAN: Realtek 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)

Wireless NIC: Wi-Fi 6

Bluetooth: v5.0

On-Board Audio: Realtek ALC1220-VB codec

On-Board Video: Processor with integrated graphics is required

Back USB 3.2 Port(s) Type-A Gen 1: 4

Back USB 3.2 Port(s) Type-A Gen 2: 1

Back USB 3.2 Port(s) Type-C Gen 2: 1

Back HDMI Port(s): 2

Back DisplayPort(s): 1

Back LAN Port(s): 1

Back Audio Jack(s): 3

Back Other Port(s): 2 x SMA antenna connectors (2T2R)

Back Button(s): 1 x Q-Flash Plus

24-pin ATX Power: 1

8-pin ATX Power: 1

USB 2.0 Header(s): 1

USB 3.2 Header(s) Gen 1: 1

Front Panel Audio Connector: 1

TPM Header(s): 1

Internal Other Port(s): 1 x Addressable LED Strip Header, 1 x RGB LED Strip Header

Form Factor: Mini ITX

Product Width: 170mm

Product Length: 170mm

Package Width: 23.5cm

Package Length: 27cm

Package Height: 10cm

Gross Weight: 1.31Kg

Special Features: Supports 3rd Gen AMD Ryzen Processors., Dual Channel ECC/ Non-ECC Unbuffered DDR4, 2 DIMMs., Direct 8 Phases Digital VRM Solution with 90A Smart Power Stage (SPS)., Advanced Thermal Design with Extended & Multi-Layered Heatsink and Thermal Baseplate., Ultra Durable PCIe 4.0 Ready x16 Slot., Dual Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Thermal Guard., Onboard Intel WiFi 6 802.11ax 2T2R & BT5 with AORUS Antenna., AMP-UP Audio with ALC1220-VB and Nichicon Audio Capacitors for Rear 120dB SNR., Blazing Fast 2.5GbE LAN with Bandwidth Management., USB 3.2 Gen2 Type-C and DisplayPort + Dual HDMI Support., RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips., Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP., Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card., Pre-installed IO Shield for Easy and Quick Installation.

In the box: B550I AORUS PRO AX motherboard; M.2 screw(s)/M.2 standoff(s); Support Disk; 1 x Antenna; Manual; 1 x Fan Power Extension Cable; 2 x SATA Cables; 1 x RGB LED Strip Extension
