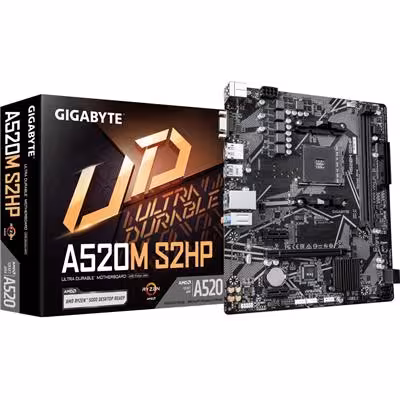

Gigabyte A520M S2HP AMD A520 Socket AM4 M-ATX Motherboard

This Gigabyte motherboard utilizes the AMD A520 chipset and AM4 socket to support compatible processors with dual-channel DDR4 memory. It features a PCIe Gen 3.0 x4 M.2 slot for high-speed storage and provides multiple display outputs including HDMI, DisplayPort, and VGA. Integrated Realtek GbE LAN and high-definition audio ensure reliable connectivity for daily computing.

VIP Computers is the UK's largest independent distributor of PC components, peripherals and associated products. VIP specialises in providing components and software that system integrators need to build PCs. The VIP Group has seen strong and continued growth since 1990. VIP has over 20 years’ experience of providing a flexible and reliable distribution service to customers, ranging from small independent retailers and etailer to major high-street chain stores.

Package Type: Retail

Warranty: 3 Years

BIOS: 1 x 128 Mbit flash, Use of licensed AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Chipset: AMD A520

CPU Interface: Socket AM4

CPU Support: https://www.gigabyte.com/Motherboard/A520M-S2HP/support#Support-Cpu-Support

RAM Technology: DDR4 (Dual Channel)

RAM Slots: 2 x 288-pin

RAM Speeds: Up to DDR4 3200

Max. Memory Support: 64GB

PCI Express 3.0 x16: 1

PCI Express 3.0 x1: 2

S-ATA 6Gb/s Port(s): 4

RAID: Raid 0/1/10

M.2 Socket(s): 1 x PCIe Gen 3.0 x4/SATA

LAN Speed: Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)

On-Board Audio: Realtek Audio CODEC, High Definition Audio, 2/4/5.1/7.1-channel

On-Board Video: Processor with integrated graphics is required

Back PS/2 Keyboard/Mouse Port: 1

Back USB 2.0 Port(s): 2

Back USB 3.2 Port(s) Type-A Gen 1: 4

Back VGA Port(s): 1

Back HDMI Port(s): 1

Back DisplayPort(s): 1

Back LAN Port(s): 1

Back Audio Jack(s): 3

24-pin ATX Power: 1

8-pin ATX Power: 1

USB 2.0 Header(s): 2

USB 3.2 Header(s) Gen 1: 1

COM Port Header(s): 1

Front Panel Audio Connector: 1

TPM Header(s): 1

Form Factor: Micro ATX

Product Width: 205mm

Product Length: 244mm

Package Width: 23.5cm

Package Length: 26.5cm

Package Height: 5.2cm

Net Weight: 0.66Kg

Gross Weight: 0.75Kg

Special Features: Supports AMD Ryzen 5000 Series/ Ryzen 5000 G-Series/ Ryzen 4000 G-Series and Ryzen 3000 and Ryzen 3000 G-Series Processors., Dual Channel ECC/ Non-ECC Unbuffered DDR4, 2 DIMMs., 4+2 Phases Hybrid Digital VRM Solution with Low RDS(on) MOSFETs., Ultra-Fast NVMe PCIe 3.0 x4 M.2 Connector., Fast NetworksGbE LAN., HDMI, Display Port, D-sub Ports for Multiple Display., Smart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP., Anti-Sulphur Resistors Design.

In the box: A520M S2HP Motherboard; Manual; Quick Installation Guide; IO Shield; 2 x SATA cables
