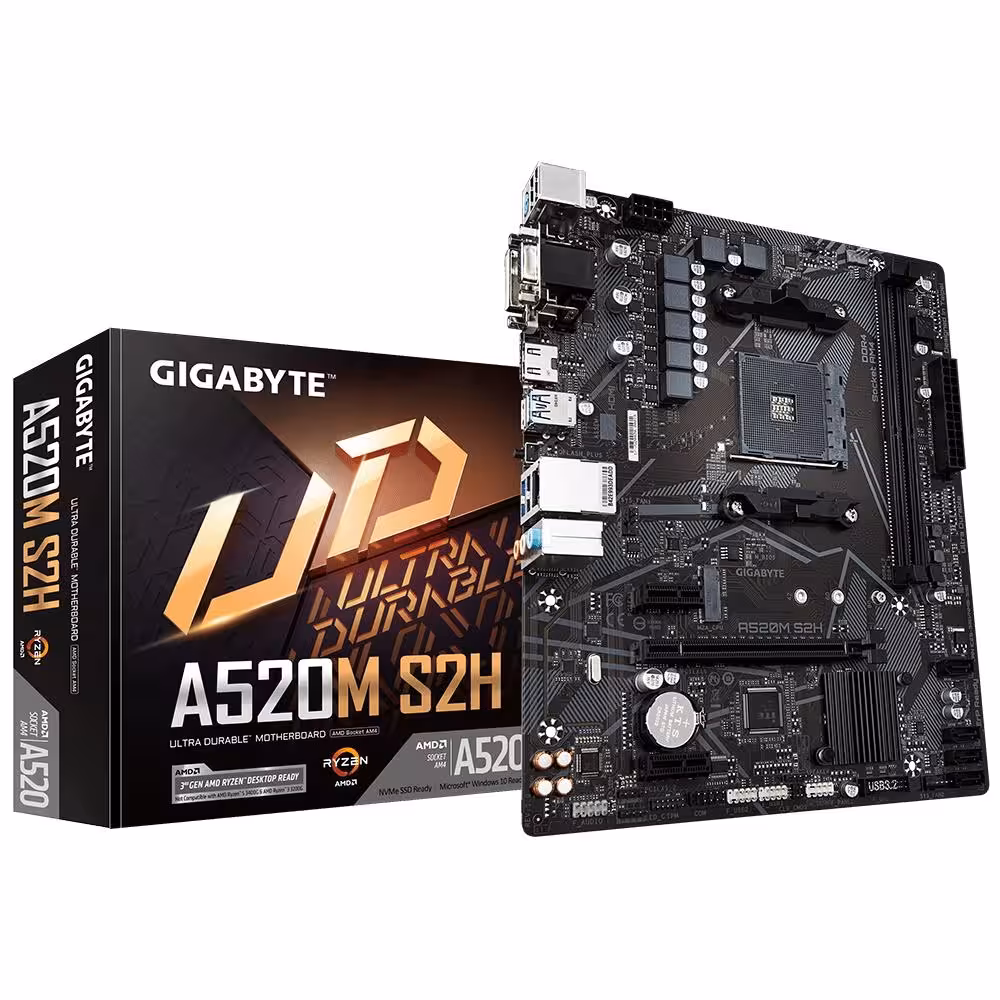

Gigabyte A520M S2H AMD Socket AM4 Micro-ATX Motherboard

This Gigabyte A520M S2H motherboard is built for AMD Socket AM4 processors and features the AMD A520 chipset. It supports dual-channel DDR4 memory up to 5000MHz (O.C.) and includes a high-speed M.2 slot for NVMe storage. Connectivity is provided via HDMI, DVI-D, and VGA outputs, while a Q-Flash Plus button allows for BIOS updates without a CPU or memory installed.

VIP Computers is the UK's largest independent distributor of PC components, peripherals and associated products. VIP specialises in providing components and software that system integrators need to build PCs. The VIP Group has seen strong and continued growth since 1990. VIP has over 20 years’ experience of providing a flexible and reliable distribution service to customers, ranging from small independent retailers and etailer to major high-street chain stores.

UPC: 889523023594

Package Type: Retail

Warranty: 3 Years

BIOS: 1 x 128 Mbit flash, Use of licensed AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Chipset: AMD A520

CPU Interface: Socket AM4

CPU Support: https://www.gigabyte.com/Motherboard/A520M-S2H-rev-10/support#support-cpu

RAM Technology: DDR4 (Dual Channel)

RAM Slots: 2 x 288-pin

RAM Speeds: Up to DDR4 5000 (O.C.)

Max. Memory Support: 64GB

PCI Express 3.0 x16: 1

PCI Express 2.0 x1: 2

S-ATA 6Gb/s Port(s): 4

RAID: Raid 0/1/10

M.2 Socket(s): 1

LAN Speed: Realtek GbE LAN chip (1000 Mbit/100 Mbit)

On-Board Audio: Realtek ALC887 codec

On-Board Video: Processor with integrated graphics is required

Back PS/2 Keyboard/Mouse Port: 1

Back USB 2.0 Port(s): 2

Back USB 3.2 Port(s) Type-A Gen 1: 4

Back VGA Port(s): 1

Back DVI-D Port(s): 1

Back HDMI Port(s): 1

Back LAN Port(s): 1

Back Audio Jack(s): 3

Back Button(s): 1 x Q-Flash Plus

24-pin ATX Power: 1

8-pin ATX Power: 1

USB 2.0 Header(s): 2

USB 3.2 Header(s) Gen 1: 1

COM Port Header(s): 1

Front Panel Audio Connector: 1

TPM Header(s): 1

Internal Other Port(s): 1 x Addressable LED Strip Header, 1 x RGB LED Strip Header

Form Factor: Micro ATX

Product Width: 205mm

Product Length: 244mm

Package Width: 23.5cm

Package Length: 27cm

Package Height: 5.5cm

Gross Weight: 1.65Kg

Special Features: Supports 3rd Gen AMD Ryzen Processors., Dual Channel ECC/ Non-ECC Unbuffered DDR4, 2 DIMMs., 4+3 Phases Pure Digital VRM Solution with Low RDS(on) MOSFETs., Ultra-Fast NVMe PCIe 3.0 x4 M.2 Connector., GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management., HDMI, DVI-D, D-sub Ports for Multiple Display., RGB FUSION 2.0 Supports Addressable LED and RGB LED Strips., Smart Fan 5 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP., Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card., Anti-Sulfur Resistors Design.

In the box: A520M S2H Motherboard; 2 x SATA Cables; Support Disk; IO Shield; Manual
