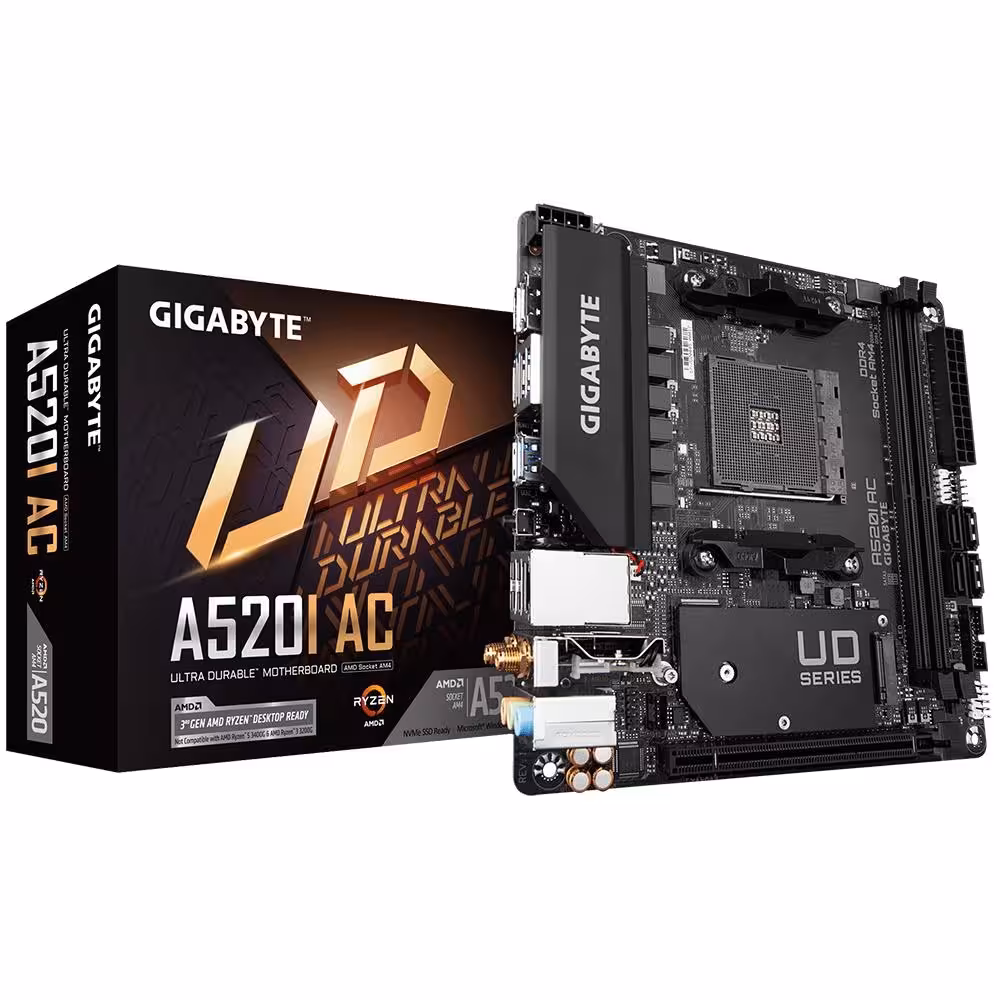

Gigabyte A520I AC AMD A520 Socket AM4 Mini-ITX Motherboard with WiFi 5

This Mini-ITX motherboard utilizes the AMD A520 chipset and Socket AM4 to support compatible processors in compact system builds. It features dual-channel DDR4 memory slots supporting speeds up to 5100MHz (O.C.) alongside integrated WiFi 5 and Bluetooth 4.2. Connectivity includes an M.2 socket for high-speed storage and dual HDMI outputs for versatile display configurations.

VIP Computers is the UK's largest independent distributor of PC components, peripherals and associated products. VIP specialises in providing components and software that system integrators need to build PCs. The VIP Group has seen strong and continued growth since 1990. VIP has over 20 years’ experience of providing a flexible and reliable distribution service to customers, ranging from small independent retailers and etailer to major high-street chain stores.

UPC: 889523023785

Package Type: Retail

Warranty: 3 Years

BIOS: 1 x 128 Mbit flash, Use of licensed AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Chipset: AMD A520

CPU Interface: Socket AM4

CPU Support: https://www.gigabyte.com/Motherboard/A520I-AC-rev-10/support#support-cpu

RAM Technology: DDR4 (Dual Channel)

RAM Slots: 2 x 288-pin

RAM Speeds: Up to DDR4 5100 (O.C.)

Max. Memory Support: 64GB

PCI Express 3.0 x16: 1

S-ATA 6Gb/s Port(s): 4

RAID: Raid 0/1/10

M.2 Socket(s): 1

LAN Speed: Realtek GbE LAN chip (1000 Mbit/100 Mbit)

Wireless NIC: WiFi 5

Bluetooth: v4.2

On-Board Audio: Realtek ALC887 codec

On-Board Video: Processor with integrated graphics is required

Back USB 2.0 Port(s): 2

Back USB 3.2 Port(s) Type-A Gen 1: 4

Back HDMI Port(s): 2

Back DisplayPort(s): 1

Back LAN Port(s): 1

Back Audio Jack(s): 3

Back Other Port(s): 2 x SMA antenna connectors (1T1R)

Back Button(s): 1 x Q-Flash Plus

24-pin ATX Power: 1

8-pin ATX Power: 1

USB 2.0 Header(s): 1

USB 3.2 Header(s) Gen 1: 1

COM Port Header(s): 1

Front Panel Audio Connector: 1

TPM Header(s): 1

Internal Other Port(s): 1 x Addressable LED Strip Header, 1 x RGB LED Strip Header

Form Factor: Mini ITX

Product Width: 170mm

Product Length: 170mm

Package Width: 19cm

Package Length: 22cm

Package Height: 7.5cm

Gross Weight: 0.82Kg

Special Features: Supports 3rd Gen AMD Ryzen Processors., Dual Channel ECC/ Non-ECC Unbuffered DDR4, 2 DIMMs., Direct 6 Phases Digital VRM Solution with 55A DrMOS., Ultra-Fast NVMe PCIe 3.0 x4 M.2., Onboard Intel Dual Band 802.11ac WIFI and BT 4.2 with Ultra Durable Antenna., GIGABYTE Exclusive 8118 Gaming GbE LAN with Bandwidth Management., DisplayPort, Dual HDMI for for Multiple Display., RGB FUSION 2.0 with Addressable LED and RGB LED Strips Support., Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP., Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card., Anti-Sulfur Resistors Design.

In the box: A520I AC Motherboard; 2 x SATA Cables; Support Disk; IO Shield; Manual; One Fan Power Extension Cable; One Antenna
