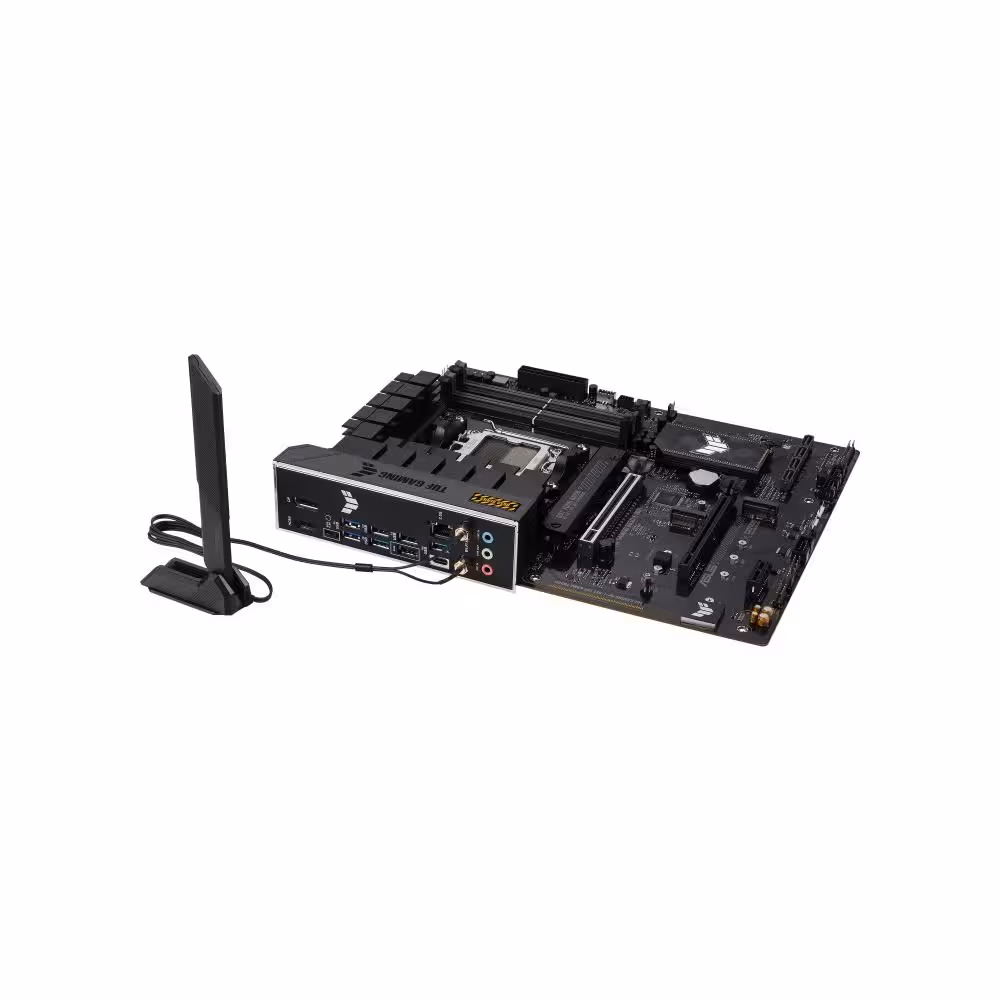

ASUS TUF GAMING B650-E WIFI Socket AM5 DDR5 Motherboard

This motherboard supports Socket AM5 processors and dual-channel DDR5 memory with speeds up to 8000+ (O.C.). It features integrated Wi-Fi 6E, Bluetooth 5.3, and 2.5Gb Ethernet to ensure high-speed wireless and wired connectivity. The board includes a PCIe 5.0 M.2 socket for ultra-fast storage performance and multiple USB 10Gbps ports for peripheral expansion.

VIP Computers is the UK's largest independent distributor of PC components, peripherals and associated products. VIP specialises in providing components and software that system integrators need to build PCs. The VIP Group has seen strong and continued growth since 1990. VIP has over 20 years’ experience of providing a flexible and reliable distribution service to customers, ranging from small independent retailers and etailer to major high-street chain stores.

UPC: 197105423077

Package Type: Retail

Warranty: 3 Years

BIOS: 256 Mb Flash ROM, UEFI AMI BIOS

Chipset: AMD B650

CPU Interface: Socket AM5

CPU Support: https://www.asus.com/motherboards-components/motherboards/tuf-gaming/tuf-gaming-b650-e-wifi/helpdesk_qvl_cpu?model2Name=TUF-GAMING-B650-E-WIFI

RAM Technology: DDR5 (Dual Channel)

RAM Slots: 4 x 288-pin

RAM Speeds: Up to DDR5 8000+ (O.C.)

Max. Memory Support: 192GB

PCI Express 4.0 x16: 3

PCI Express 4.0 x1: 1

S-ATA 6Gb/s Port(s): 4

RAID: Raid 0/1/10

M.2 Socket(s): 1 x PCIe Gen 5.0 x4, 2 x PCIe Gen 4.0 x4

On-Board LAN: 1 x Realtek 2.5Gb Ethernet, TUF LANGuard

Wireless NIC: Wi-Fi 6E

Wireless Technology: 2x2 Wi-Fi 6E (802.11 a/b/g
/ac/ax), Supports 2.4/5/6GHz frequency band

Bluetooth: v5.3

On-Board Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC

On-Board Video: Processor with integrated graphics is required

Back USB 2.0 Port(s): 3

Back USB 5Gbps Port(s) Type-A: 3

Back USB 10Gbps Port(s) Type-A: 1

Back USB 10Gbps Port(s) Type-C: 1

Back HDMI Port(s): 1

Back DisplayPort(s): 1

Back LAN Port(s): 1

Back Audio Jack(s): 5

Back Other Port(s): 1 x Wi-Fi Module

Back Button(s): 1 x BIOS FlashBack

24-pin ATX Power: 1

8-pin ATX Power: 1

4-pin ATX Power: 1

USB 2.0 Header(s): 2

USB 5Gbps Header(s): 1

USB 20Gbps Header(s): 1

COM Port Header(s): 1

Front Panel Audio Connector: 1

Internal Other Port(s): 3 x Addressable Gen 2 headers, 1 x Aura RGB header

Form Factor: Standard ATX

Product Width: 244mm

Product Length: 305mm

Package Width: 27.3cm

Package Length: 35.7cm

Package Height: 6.7cm

Gross Weight: 1.76Kg

Special Features: ASUS TUF Protection, ASUS Q-Design, ASUS Thermal Solution, ASUS EZ DIY, Aura Sync

In the box: Motherboard; 2 X SATA 6Gb/s Cables; 1 x ASUS Wi-Fi Moving Antennas; 1 x Rubber Package for M.2; 2 x Screw Packages for M.2 SSD; 1 x TUF Certification Card; 1 x User Guide
