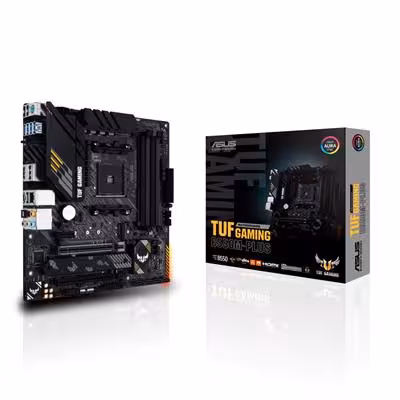

ASUS TUF GAMING B550M-PLUS AMD B550 Socket AM4 PCIe 4.0 Micro-ATX Motherboard

This AMD B550 chipset motherboard supports Socket AM4 processors and features PCIe 4.0 connectivity for high-speed data transfer. It provides four DDR4 RAM slots for up to 128GB of memory and includes a Realtek 2.5Gb Ethernet port for enhanced networking performance. The rear panel offers versatile connectivity including USB 3.2 Gen 2 Type-A and Type-C ports.

VIP Computers is the UK's largest independent distributor of PC components, peripherals and associated products. VIP specialises in providing components and software that system integrators need to build PCs. The VIP Group has seen strong and continued growth since 1990. VIP has over 20 years’ experience of providing a flexible and reliable distribution service to customers, ranging from small independent retailers and etailer to major high-street chain stores.

Package Type: Retail

Warranty: 3 Years

BIOS: 256 Mb Flash ROM, UEFI AMI BIOS

Chipset: AMD B550

CPU Interface: Socket AM4

RAM Technology: DDR4 (Dual Channel)

RAM Slots: 4 x 288-pin

RAM Speeds: Up to DDR4 4400 (O.C.)

Max. Memory Support: 128GB

PCI Express 3.0 x16: 1

PCI Express 4.0 x16: 1

PCI Express 3.0 x1: 1

S-ATA 6Gb/s Port(s): 4

M.2 Socket(s): 2

On-Board LAN: Realtek RTL8125B 2.5Gb Ethernet, TUF LANGuard

On-Board Audio: Realtek ALC S1200A 7.1 Surround Sound High Definition Audio CODEC

On-Board Video: Processor with integrated graphics is required

Back PS/2 Keyboard/Mouse Port: 1

Back USB 2.0 Port(s): 2

Back USB 3.2 Port(s) Type-A Gen 1: 4

Back USB 3.2 Port(s) Type-A Gen 2: 1

Back USB 3.2 Port(s) Type-C Gen 2: 1

Back HDMI Port(s): 1

Back DisplayPort(s): 1

Back LAN Port(s): 1

Back Audio Jack(s): 5

Back S/PDIF Output Port(s): 1

Back Button(s): 1 x BIOS FlashBack

24-pin ATX Power: 1

8-pin ATX Power: 1

COM Port Header(s): 1

Front Panel Audio Connector: 1

TPM Header(s): 1

Internal Other Port(s): 2 x Aura RGB Strip Headers, 1 x Addressable Gen 2 Header

Form Factor: Micro ATX

Product Width: 244mm

Product Length: 244mm

Package Width: 26.5cm

Package Length: 27.5cm

Package Height: 7cm

Gross Weight: 1.17Kg

Special Features: ASUS TUF Protection, ASUS Q-Design, ASUS Thermal Solution, ASUS EZ DIY, AURA Sync

In the box: Motherboard; Manual; IO Shield; 2 x SATA 6Gb/s Cables; 1 x Supporting DVD; 1 x TUF Gaming Sticker; 1 x TUF Certification Card; 1 x M.2 SSD Screw Package; 1 x M.2 Rubber Package
