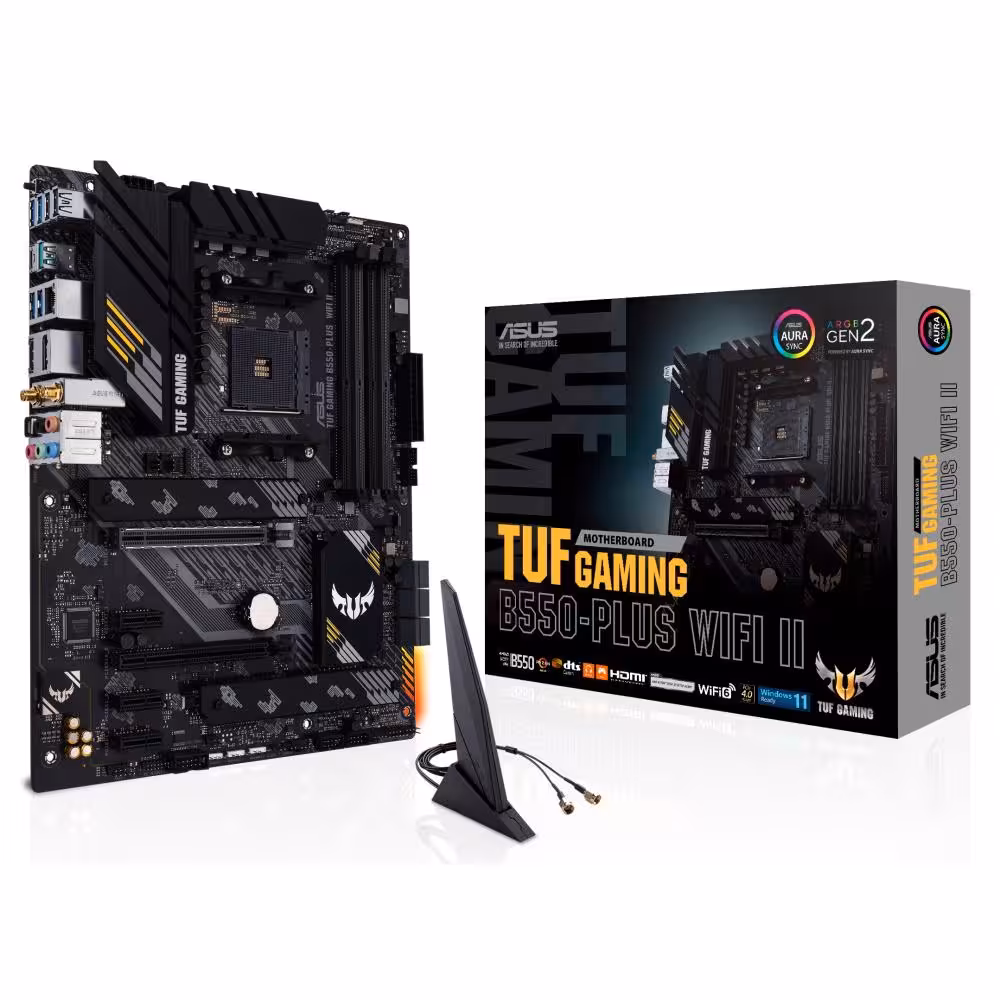

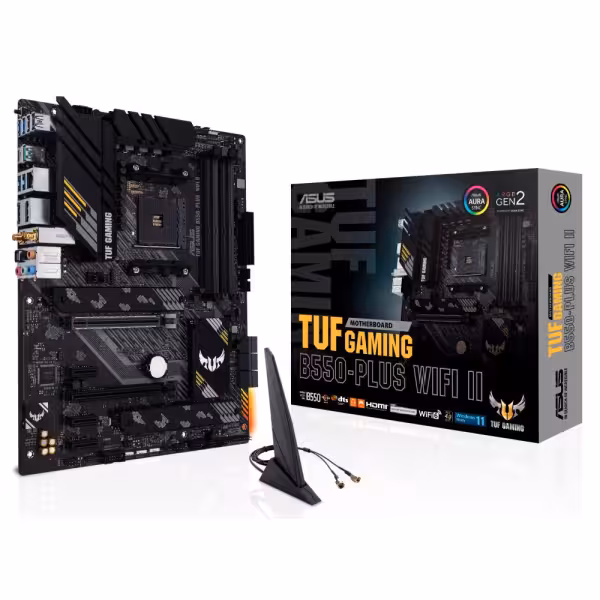

ASUS TUF GAMING B550-PLUS WIFI II AMD B550 Socket AM4 ATX Motherboard

This ATX motherboard is built on the AMD B550 chipset with the AM4 socket, supporting PCIe 4.0 technology and DDR4 memory up to 128GB. It features integrated Wi-Fi 6 and 2.5Gb Ethernet for high-speed networking, alongside dual M.2 slots for rapid storage. Rear connectivity includes HDMI, DisplayPort, and a variety of USB 3.2 ports including Type-C.

VIP Computers is the UK's largest independent distributor of PC components, peripherals and associated products. VIP specialises in providing components and software that system integrators need to build PCs. The VIP Group has seen strong and continued growth since 1990. VIP has over 20 years’ experience of providing a flexible and reliable distribution service to customers, ranging from small independent retailers and etailer to major high-street chain stores.

UPC: 195553338417

Package Type: Retail

Warranty: 3 Years

BIOS: 256 Mb Flash ROM, UEFI AMI BIOS

Chipset: AMD B550

CPU Interface: Socket AM4

RAM Technology: DDR4 (Dual Channel)

RAM Slots: 4 x 288-pin

RAM Speeds: Up to DDR4 4866 (O.C.)

Max. Memory Support: 128GB

PCI Express 3.0 x16: 1

PCI Express 4.0 x16: 1

PCI Express 3.0 x1: 3

S-ATA 6Gb/s Port(s): 6

RAID: Raid 0/1/10

M.2 Socket(s): 1 x SATA/PCIe 4.0 x4, 1 x SATA/PCIe 3.0 x4

On-Board LAN: 1 x Realtek 2.5Gb Ethernet

Wireless NIC: 2x2 Wi-Fi 6 (802.11 a/b/g
/ac/ax) + BT5.2, 2x2 Wi-Fi 6 (802.11 a/b/g
/ac/ax)

Wireless Technology: Supports 2.4/5GHz frequency band

Bluetooth: v5.2

On-Board Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC

On-Board Video: Processor with integrated graphics is required

Back USB 2.0 Port(s): 2

Back USB 3.2 Port(s) Type-A Gen 1: 4

Back USB 3.2 Port(s) Type-A Gen 2: 1

Back USB 3.2 Port(s) Type-C Gen 2: 1

Back HDMI Port(s): 1

Back DisplayPort(s): 1

Back LAN Port(s): 1

Back Audio Jack(s): 5

Back S/PDIF Output Port(s): 1

Back Other Port(s): 1 x ASUS Wi-Fi Module

Back Button(s): 1 x BIOS FlashBack

24-pin ATX Power: 1

8-pin ATX Power: 1

USB 2.0 Header(s): 2

USB 3.2 Header(s) Gen 1: 1

Thunderbolt Header(s): 1

COM Port Header(s): 1

Front Panel Audio Connector: 1

TPM Header(s): 1

Internal Other Port(s): 2 x AURA Addressable Gen 2 headers, 2 x AURA RGB headers, 1 x Thermal Sensor header

Form Factor: Standard ATX

Product Width: 244mm

Product Length: 305mm

Package Width: 27.5cm

Package Length: 34cm

Package Height: 7cm

Gross Weight: 1.61Kg

Special Features: AMD AM4 socket: Ready for Ryzen 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors., Enhanced power solution: 8+2 DrMOS power stages, ProCool sockets, military-grade TUF components, and Digi+ VRM for maximum durability., Comprehensive cooling: VRM heatsink, PCH fanless heatsink, Dual M.2 heatsink, hybrid fan headers and Fan Xpert 4 utility., Next-gen connectivity: PCIe 4.0 M.2, USB 3.2 Gen 2 Type-A and Type-C, Thunderbolt™ 3 header support., Made for online gaming: Wi-Fi 6, 2.5 Gb Ethernet, and TUF LANGuard., AI noise-cancelling microphone provides crystal-clear in-game voice communication.

In the box: Motherboard; 2 x SATA 6Gb/s cables; IO Shield; 1 x M.2 ANCHOR; Support Disk; Manual
