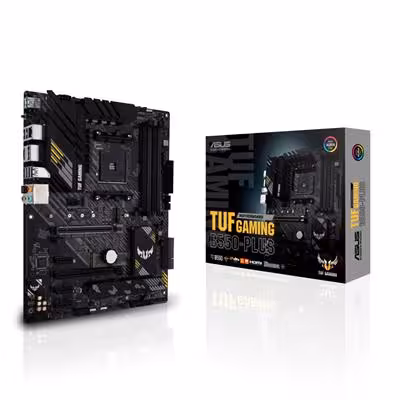

ASUS TUF GAMING B550-PLUS AMD B550 Socket AM4 ATX Motherboard

This ATX motherboard features the AMD B550 chipset and Socket AM4 for compatibility with Ryzen processors. It supports PCIe 4.0 technology, dual M.2 slots for high-speed storage, and up to 128GB of DDR4 memory. Connectivity includes 2.5Gb Ethernet, USB 3.2 Gen 2 Type-C, and high-definition 7.1 channel audio.

VIP Computers is the UK's largest independent distributor of PC components, peripherals and associated products. VIP specialises in providing components and software that system integrators need to build PCs. The VIP Group has seen strong and continued growth since 1990. VIP has over 20 years’ experience of providing a flexible and reliable distribution service to customers, ranging from small independent retailers and etailer to major high-street chain stores.

Package Type: Retail

Warranty: 3 Years

BIOS: 256 Mb Flash ROM, UEFI AMI BIOS

Chipset: AMD B550

CPU Interface: Socket AM4

RAM Technology: DDR4 (Dual Channel)

RAM Slots: 4 x 288-pin

RAM Speeds: Up to DDR4 4400 (O.C.)

Max. Memory Support: 128GB

PCI Express 3.0 x16: 1

PCI Express 4.0 x16: 1

PCI Express 3.0 x1: 3

S-ATA 6Gb/s Port(s): 6

RAID: Raid 0/1/10

M.2 Socket(s): 2

On-Board LAN: 1 x Realtek RTL8125B 2.5Gb Ethernet

On-Board Audio: Realtek ALC S1200A 7.1-Channel High Definition Audio CODEC

On-Board Video: Processor with integrated graphics is required

Back USB 2.0 Port(s): 2

Back USB 3.2 Port(s) Type-A Gen 1: 4

Back USB 3.2 Port(s) Type-A Gen 2: 1

Back USB 3.2 Port(s) Type-C Gen 2: 1

Back HDMI Port(s): 1

Back DisplayPort(s): 1

Back LAN Port(s): 1

Back Audio Jack(s): 5

Back S/PDIF Output Port(s): 1

Back Button(s): 1 x BIOS FlashBack

24-pin ATX Power: 1

8-pin ATX Power: 1

USB 2.0 Header(s): 2

USB 3.1 Header(s) Gen 1: 1

Thunderbolt Header(s): 1

COM Port Header(s): 1

Front Panel Audio Connector: 1

TPM Header(s): 1

Internal Other Port(s): 1 x AURA Addressable Gen 2 Header, 2 x AURA RGB Headers, 1 x Thermal Sensor Header

Form Factor: Standard ATX

Product Width: 244mm

Product Length: 305mm

Package Width: 27.5cm

Package Length: 34cm

Package Height: 7cm

Gross Weight: 1.47Kg

Special Features: ASUS TUF Protection, ASUS Q-Design, ASUS Thermal Solution, ASUS EZ DIY, AURA Sync

In the box: Motherboard; 2 x SATA 6GB/s Cables; 1 x IO Shield; 1 x M.2 Rubber Package; 1 x M.2 SSD Screw Packages; 1 x M.2 Key E Screw Package; 1 x TUF Gaming Sticker; 1 x Support Disl; 1 x TUF Certification Card; 1 x User Manual
