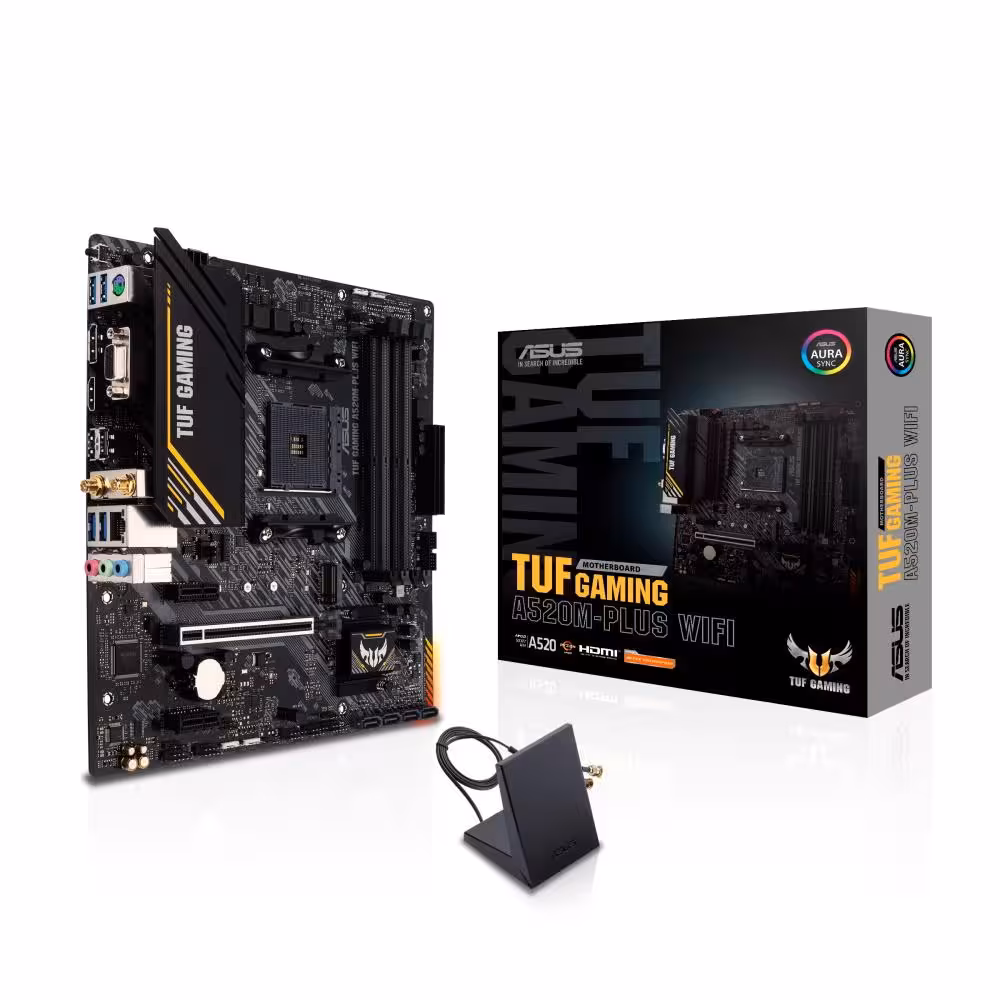

ASUS TUF GAMING A520M-PLUS WIFI AMD AM4 Micro ATX Motherboard

This Micro ATX motherboard is built on the AMD A520 chipset and features an AM4 socket for compatible processor support. It includes four DDR4 slots for up to 128GB of memory, alongside integrated Wi-Fi 5 and Bluetooth 5.0 connectivity. The rear I/O provides flexible display options with HDMI, DisplayPort, and VGA outputs.

VIP Computers is the UK's largest independent distributor of PC components, peripherals and associated products. VIP specialises in providing components and software that system integrators need to build PCs. The VIP Group has seen strong and continued growth since 1990. VIP has over 20 years’ experience of providing a flexible and reliable distribution service to customers, ranging from small independent retailers and etailer to major high-street chain stores.

UPC: 195553154277

Package Type: Retail

Warranty: 3 Years

BIOS: 128 Mb Flash ROM, UEFI AMI BIOS

Chipset: A520

CPU Interface: Socket AM4

CPU Support: https://www.asus.com/Motherboards-Components/Motherboards/TUF-Gaming/TUF-GAMING-A520M-PLUS-WIFI/HelpDesk_CPU/

RAM Technology: DDR4 (Dual Channel)

RAM Slots: 4 x 288-pin

RAM Speeds: Up to DDR4 4866 (O.C.)

Max. Memory Support: 128GB

PCI Express 3.0 x16: 1

PCI Express 3.0 x1: 2

S-ATA 6Gb/s Port(s): 4

RAID: Raid 0/1/10

On-Board LAN: 1 x Realtek 1Gb Ethernet

Wireless NIC: Realtek Wi-Fi 8821CE

Wireless Technology: 1x1 Wi-Fi 5 (802.11 a/b/g
/ac) with MU-MIMO, Supports dual frequency band 2.4/5GHz, Supports channel bandwidth: HT20/HT40/HT80

Bluetooth: v5.0

On-Board Audio: Realtek ALC 887/897 7.1 Surround Sound High-Definition Audio CODEC

On-Board Video: Processor with integrated graphics is required

Back PS/2 Keyboard/Mouse Port: 1

Back USB 2.0 Port(s): 2

Back USB 3.2 Port(s) Type-A Gen 1: 4

Back VGA Port(s): 1

Back HDMI Port(s): 1

Back DisplayPort(s): 1

Back LAN Port(s): 1

Back Audio Jack(s): 3

Back Other Port(s): 1 x ASUS Wi-Fi Module

Back Button(s): 1 x BIOS FlashBack

24-pin ATX Power: 1

8-pin ATX Power: 1

USB 2.0 Header(s): 2

USB 3.2 Header(s) Gen 1: 1

COM Port Header(s): 1

Front Panel Audio Connector: 1

TPM Header(s): 1

S/PDIF Out Header(s): 1

Internal Other Port(s): 2 x AURA Addressable Gen 2 header, 2 x AURA RGB headers

Form Factor: Micro ATX

Product Width: 244mm

Product Length: 244mm

Package Width: 27.5cm

Package Length: 28cm

Package Height: 7cm

Gross Weight: 1.30Kg

Special Features: AMD AM4 socket: Ready for Ryzen 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors., Comprehensive cooling: Large VRM heatsink, PCH heatsink, Fan Xpert 2+., Made for online gaming: 802.11ac Wi-Fi, TUF LANGuard and TurboLAN technology., Aura Sync RGB: Onboard RGB headers and addressable Gen 2 headers for RGB LED strips, easily synced with Aura Sync-capable hardware.

In the box: Motherboard; 2 x SATA 6Gb/s cables; IO Shield; 1 x M.2 SSD screw package; 1 x ASUS Wi-Fi moving antenna; 1 x TUF Gaming sticker; Support Disk; 1 x TUF Certification card; Manual
