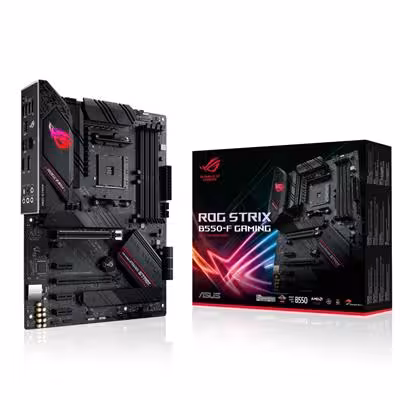

ASUS ROG STRIX B550-F GAMING AM4 ATX Motherboard with Wi-Fi

Built for AMD AM4 socket processors, this B550 chipset motherboard supports dual-channel DDR4 memory up to 4400MHz (O.C). Integrated Intel 2.5Gb Ethernet and Wi-Fi provide high-speed networking, while dual M.2 slots offer flexible storage options. ROG SupremeFX 8-channel audio delivers high-fidelity sound for gaming and media.

VIP Computers is the UK's largest independent distributor of PC components, peripherals and associated products. VIP specialises in providing components and software that system integrators need to build PCs. The VIP Group has seen strong and continued growth since 1990. VIP has over 20 years’ experience of providing a flexible and reliable distribution service to customers, ranging from small independent retailers and etailer to major high-street chain stores.

Package Type: Retail

Warranty: 3 Years

BIOS: 256 Mb Flash ROM, UEFI AMI BIOS

Chipset: AMD B550

CPU Interface: Socket AM4

RAM Technology: DDR4 (Dual Channel)

RAM Slots: 4 x 288-pin

RAM Speeds: Up to DDR4 4400 (O.C)

Max. Memory Support: 128GB

PCI Express 3.0 x16: 2

PCI Express 3.0 x1: 3

S-ATA 6Gb/s Port(s): 6

RAID: Raid 0/1/10

M.2 Socket(s): 2

On-Board LAN: Intel I225-V 2.5Gb Ethernet

On-Board Audio: ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A

On-Board Video: Processor with integrated graphics is required

Back USB 2.0 Port(s): 2

Back USB 3.2 Port(s) Type-C Gen 1: 4

Back USB 3.2 Port(s) Type-A Gen 2: 1

Back USB 3.2 Port(s) Type-C Gen 2: 1

Back HDMI Port(s): 1

Back DisplayPort(s): 1

Back LAN Port(s): 1

Back Audio Jack(s): 5

Back S/PDIF Output Port(s): 1

Back Other Port(s): ASUS Wi-Fi module (Wi-Fi 802.11 a/b/g
/ac and Bluetooth v5.0)

Back Button(s): 1 x BIOS FlashBack

24-pin ATX Power: 1

8-pin ATX Power: 1

4-pin ATX Power: 1

USB 2.0 Header(s): 2

USB 3.2 Header(s) Gen 1: 1

Thunderbolt Header(s): 1

Internal Other Port(s): 2 x Aura RGB Strip Headers, 1 x Addressable Gen 2 Headers, 1 x Thermal sensor Connector

Form Factor: Standard ATX

Product Width: 244mm

Product Length: 305mm

Package Width: 27.5cm

Package Length: 34cm

Package Height: 7cm

Gross Weight: 1.68Kg

Special Features: Aura Sync, ASUS Q-Design, ASUS Thermal Solution, ASUS EZ DIY

In the box: Motherboard; Manual; 4 x SATA 6Gb/s cables; 1 x Supporting Disk; 1 x ROG Strix Stickers; 1 x Cable Ties Pack; 1 x Extension Cable for Addressable LED; 1 x ROG Thank You Card; 1 x M.2 SSD Screw Package; 1 x M.2 Rubber Package
