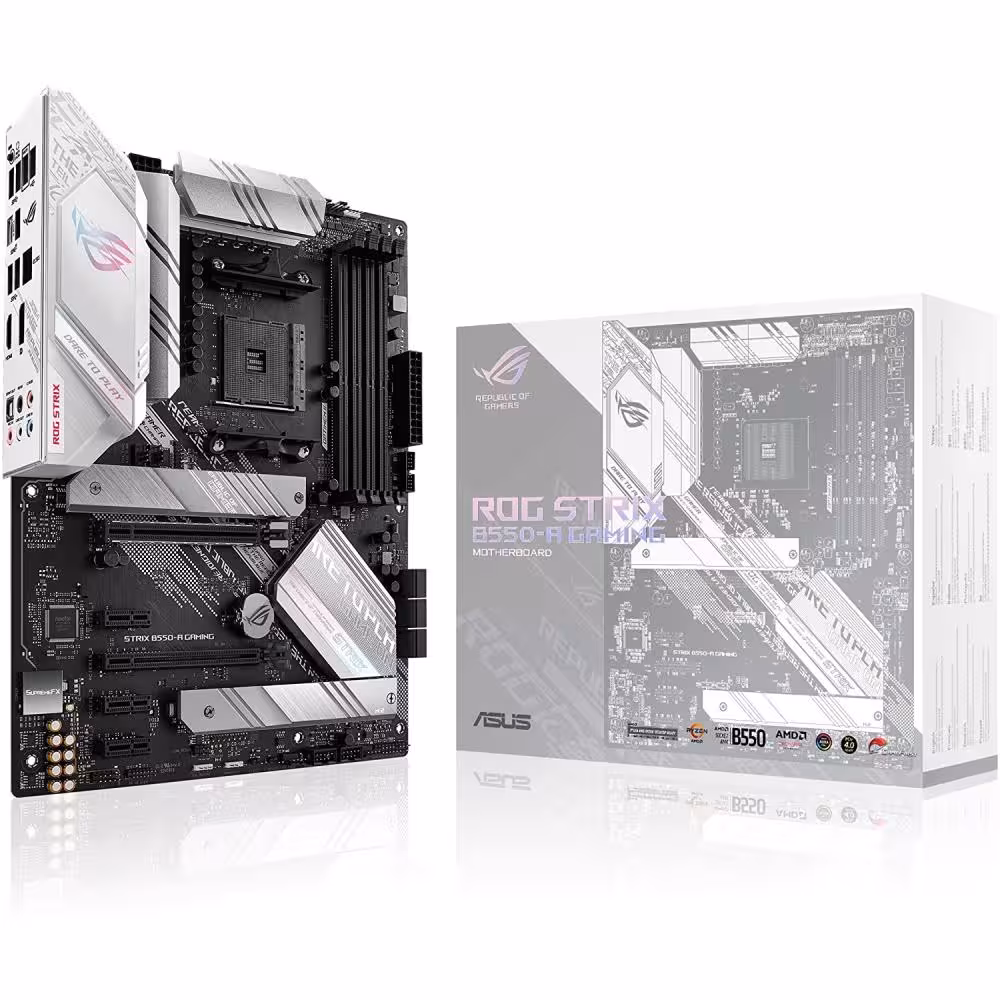

ASUS ROG STRIX B550-A GAMING AMD B550 Socket AM4 ATX Motherboard

This AMD B550 chipset motherboard supports Socket AM4 processors and high-speed PCIe 4.0 connectivity. It features four DDR4 slots for up to 128GB of memory, dual M.2 sockets, and Intel 2.5Gb Ethernet for low-latency networking. High-fidelity sound is provided by the ROG SupremeFX S1220A 8-channel audio codec.

VIP Computers is the UK's largest independent distributor of PC components, peripherals and associated products. VIP specialises in providing components and software that system integrators need to build PCs. The VIP Group has seen strong and continued growth since 1990. VIP has over 20 years’ experience of providing a flexible and reliable distribution service to customers, ranging from small independent retailers and etailer to major high-street chain stores.

UPC: 192876826591

Package Type: Retail

Warranty: 3 Years

BIOS: 256 Mb Flash ROM, UEFI AMI BIOS

Chipset: AMD B550

CPU Interface: Socket AM4

CPU Support: https://www.asus.com/uk/Motherboards/ROG-STRIX-B550-A-GAMING/HelpDesk_CPU/

RAM Technology: DDR4 (Dual Channel)

RAM Slots: 4 x 288-pin

RAM Speeds: Up to DDR4 5100 (O.C.)

Max. Memory Support: 128GB

PCI Express 3.0 x16: 1

PCI Express 4.0 x16: 1

PCI Express 3.0 x1: 3

S-ATA 6Gb/s Port(s): 6

RAID: Raid 0/1/10

M.2 Socket(s): 2

On-Board LAN: Intel I225-V 2.5Gb Ethernet, ASUS LANGuard

On-Board Audio: ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A

Back USB 2.0 Port(s): 2

Back USB 3.2 Port(s) Type-A Gen 1: 4

Back USB 3.2 Port(s) Type-A Gen 2: 1

Back USB 3.2 Port(s) Type-C Gen 2: 1

Back HDMI Port(s): 1

Back DisplayPort(s): 1

Back LAN Port(s): 1

Back Audio Jack(s): 5

Back S/PDIF Output Port(s): 1

Back Button(s): 1 x BIOS FlashBack

24-pin ATX Power: 1

8-pin ATX Power: 1

4-pin ATX Power: 1

USB 2.0 Header(s): 2

USB 3.2 Header(s) Gen 1: 1

Thunderbolt Header(s): 1

Front Panel Audio Connector: 1

Internal Other Port(s): 2 x Aura RGB Strip Headers, 1 x Addressable Gen 2 Header, 1 x Thermal Sensor Connector

Form Factor: Standard ATX

Product Width: 244mm

Product Length: 305mm

Package Width: 27.5cm

Package Length: 34cm

Package Height: 7cm

Gross Weight: 1.70Kg

Special Features: AM4 socket: Ready for 3rd Gen AMD Ryzen processors., Best gaming connectivity: PCIe 4.0-ready, dual M.2, USB 3.2 Gen 2 Type-C plus HDMI 2.1 and DisplayPort 1.2 output support., Smooth networking: Intel 2.5Gb Ethernet with ASUS LANGuard., Robust power solution: Teamed power stages with ProCool power connector, high-quality alloy chokes and durable capacitors., Renowned software: Intuitive dashboards for UEFI BIOS and ASUS AI Networking make it easy to configure gaming builds., DIY-friendly design: Includes pre-mounted I/O shield, BIOS FlashBack, Q-LEDs and SafeSlot., Unmatched personalisation: ASUS-exclusive Aura Sync RGB lighting, including Aura RGB header and addressable Gen 2 RGB header., Industry-leading gaming audio: AI Noise-Cancelling Microphone, SupremeFX S1220A codec, DTS® Sound Unbound and Sonic Studio III for immersive audio.

In the box: Motherboard; Manual; 4 x SATA 6Gb/s cables; 1 x Supporting DVD; 1 x ROG Strix stickers; 1 x Cable ties pack; 1 x Extension cable for Addressable LED; 1 x ROG Thank you card; 1 x M.2 SSD screw package; 1 x M.2 Rubber Package
