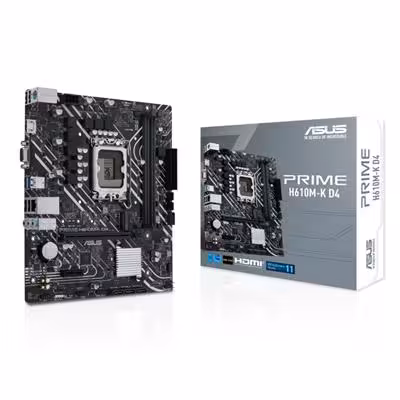

ASUS PRIME H610M-K D4 Intel Socket 1700 Micro-ATX DDR4 Motherboard
Brand: ASUS Quick Find: 74785 13 in stock£57.18
Overview
This Intel H610 chipset motherboard supports 12th and 13th Gen processors with dual-channel DDR4 memory up to 64GB. It features a PCIe 4.0 x16 slot for modern graphics cards and a dedicated M.2 socket for high-speed SSD storage. Connectivity includes HDMI and VGA outputs, Realtek 1Gb Ethernet, and high-definition 7.1 surround sound audio.
Read More
Specifications
| Specification | Value |
|---|---|
| UPC | 195553565493 |
| Package Type | Retail |
| Warranty | 3 Years |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
| Chipset | Intel H610 |
| CPU Interface | Socket 1700 |
| RAM Technology | DDR4 (Dual Channel) |
| RAM Slots | 2 x 288-pin |
| RAM Speeds | Up to DDR4 3200 (O.C.) |
| Max. Memory Support | 64GB |
| PCI Express 4.0 x16 | 1 |
| PCI Express 3.0 x1 | 1 |
| S-ATA 6Gb/s Port(s) | 4 |
| M.2 Socket(s) | 1 x SATA/PCIe 3.0 x4 |
| On-Board LAN | 1 x Realtek 1Gb Ethernet |
| On-Board Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC |
| On-Board Video | Processor with integrated graphics is required |
| Back PS/2 Keyboard/Mouse Port | 1 |
| Back USB 2.0 Port(s) | 4 |
| Back USB 3.2 Port(s) Type-A Gen 1 | 2 |
| Back VGA Port(s) | 1 |
| Back HDMI Port(s) | 1 |
| Back LAN Port(s) | 1 |
| Back Audio Jack(s) | 3 |
| 24-pin ATX Power | 1 |
| 8-pin ATX Power | 1 |
| USB 2.0 Header(s) | 1 |
| USB 3.2 Header(s) Gen 1 | 1 |
| COM Port Header(s) | 1 |
| Front Panel Audio Connector | 1 |
| TPM Header(s) | 1 |
| S/PDIF Out Header(s) | 1 |
| Internal Other Port(s) | 1 x RGB header |
| Form Factor | Micro ATX |
| Product Width | 203mm |
| Product Length | 234mm |
| Product Height | 35.6mm |
| Package Width | 26.3cm |
| Package Length | 27cm |
| Package Height | 5.15cm |
| Net Weight | 0.48Kg |
| Gross Weight | 0.85Kg |
| Special Features | ASUS 5X PROTECTION III, ASUS Q-Design, ASUS Thermal Solution, ASUS Lighting Control |
What's in the box
- Motherboard
- 2 x SATA 6Gb/s cables
- 1 x IO Shield
- 1 x M.2 ANCHOR
- 1 x Support Disk
- 1 x User guide
Gallery
