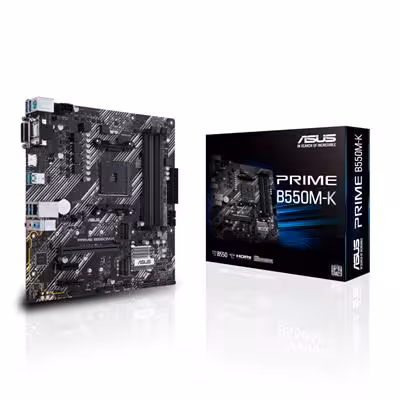

ASUS PRIME B550M-K AMD B550 Socket AM4 Micro-ATX Motherboard

This Micro-ATX motherboard features the AMD B550 chipset and Socket AM4 interface. It supports up to 128GB of dual-channel DDR4 memory with speeds reaching 4400MHz (O.C.). Connectivity options include PCIe 4.0, dual M.2 sockets, and multiple video outputs including HDMI, DVI-D, and VGA.

VIP Computers is the UK's largest independent distributor of PC components, peripherals and associated products. VIP specialises in providing components and software that system integrators need to build PCs. The VIP Group has seen strong and continued growth since 1990. VIP has over 20 years’ experience of providing a flexible and reliable distribution service to customers, ranging from small independent retailers and etailer to major high-street chain stores.

Package Type: Retail

Warranty: 3 Years

BIOS: 256 Mb Flash ROM, UEFI AMI BIOS

Chipset: AMD B550

CPU Interface: Socket AM4

RAM Technology: DDR4 (Dual Channel)

RAM Slots: 4 x 288-pin

RAM Speeds: Up to DDR4 4400 (O.C.)

Max. Memory Support: 128GB

PCI Express 4.0 x16: 1

PCI Express 3.0 x1: 2

S-ATA 6Gb/s Port(s): 4

RAID: Raid 0/1/10

M.2 Socket(s): 2

On-Board LAN: Realtek RTL8111H 1Gb Ethernet

On-Board Audio: Realtek ALC887 7.1 Surround Sound High Definition Audio CODEC

On-Board Video: Processor with integrated graphics is required

Back PS/2 Keyboard/Mouse Port: 1

Back USB 3.2 Port(s) Type-A Gen 1: 4

Back USB 3.2 Port(s) Type-A Gen 2: 2

Back VGA Port(s): 1

Back DVI-D Port(s): 1

Back HDMI Port(s): 1

Back LAN Port(s): 1

Back Audio Jack(s): 3

24-pin ATX Power: 1

8-pin ATX Power: 1

USB 2.0 Header(s): 2

USB 3.2 Header(s) Gen 1: 1

COM Port Header(s): 1

Front Panel Audio Connector: 1

TPM Header(s): 1

Form Factor: Micro ATX

Product Width: 244mm

Product Length: 244mm

Package Width: 26cm

Package Length: 27cm

Package Height: 5cm

Gross Weight: 0.92Kg

Special Features: AMD AM4 socket: Ready for 3rd Gen AMD Ryzen processors., Comprehensive cooling: PCH heatsink and Fan Xpert 2+., Ultrafast connectivity: Dual M.2, PCIe 4.0, 1 Gb Ethernet, USB 3.2 Gen 2 Type-A., 5X Protection III: Multiple hardware safeguards for all-around system protection.

In the box: Motherboard; Manual; IO Shield; 2 x SATA 6Gb/s Cables; 1 x Supporting Disk; 1 x M.2 SSD Screw Package
