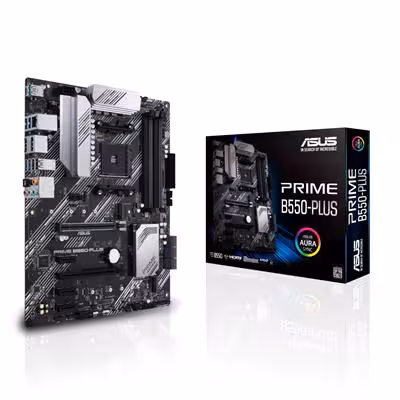

ASUS Prime B550-PLUS AMD B550 Socket AM4 DDR4 Motherboard

This AMD B550 chipset motherboard supports Socket AM4 processors and features PCIe 4.0 connectivity for high-speed data transfer. It includes four dual-channel DDR4 slots for up to 128GB of memory alongside dual M.2 sockets and Realtek 1Gb Ethernet. Integrated connectivity options include HDMI, DisplayPort, and USB 3.2 Gen 2 Type-A and Type-C ports.

VIP Computers is the UK's largest independent distributor of PC components, peripherals and associated products. VIP specialises in providing components and software that system integrators need to build PCs. The VIP Group has seen strong and continued growth since 1990. VIP has over 20 years’ experience of providing a flexible and reliable distribution service to customers, ranging from small independent retailers and etailer to major high-street chain stores.

Package Type: Retail

Warranty: 3 Years

BIOS: 256 Mb Flash ROM, UEFI AMI BIOS

Chipset: AMD B550

CPU Interface: Socket AM4

RAM Technology: DDR4 (Dual Channel)

RAM Slots: 4 x 288-pin

RAM Speeds: Up to DDR4

Max. Memory Support: 128GB

PCI Express 3.0 x16: 1

PCI Express 4.0 x16: 1

PCI Express 3.0 x1: 3

S-ATA 6Gb/s Port(s): 6

RAID: Raid 0/1/10

M.2 Socket(s): 2

On-Board LAN: 1 x Realtek RTL8111H 1Gb Ethernet

On-Board Audio: Realtek ALC887 7.1-Channel High Definition Audio CODEC

On-Board Video: Processor with integrated graphics is required

Back USB 2.0 Port(s): 2

Back USB 3.2 Port(s) Type-A Gen 2: 1

Back USB 3.2 Port(s) Type-C Gen 2: 1

Back HDMI Port(s): 1

Back DisplayPort(s): 1

Back LAN Port(s): 1

Back Audio Jack(s): 5

Back S/PDIF Output Port(s): 1

24-pin ATX Power: 1

8-pin ATX Power: 1

USB 2.0 Header(s): 2

USB 3.2 Header(s) Gen 1: 1

COM Port Header(s): 1

TPM Header(s): 1

Internal Other Port(s): 1 x AURA Addressable Gen 2 Header, 2 x AURA RGB Headers, 1 x Front Panel Audio Header (AAFP), 1 x T-Sensor Header, 1 x Thunderbolt Header

Form Factor: Standard ATX

Product Width: 244mm

Product Length: 305mm

Package Width: 27cm

Package Length: 33cm

Package Height: 5cm

Gross Weight: 1.36Kg

Special Features: ASUS 5X Protection III, ASUS Q-Design, ASUS Thermal Solution, ASUS EZ DIY, AURA Sync

In the box: Motherboard; 2 x SATA 6Gb/s Cables; 1 x IO Shield; 1 x M.2 SSD Screw Package; Support Disk; Manual
