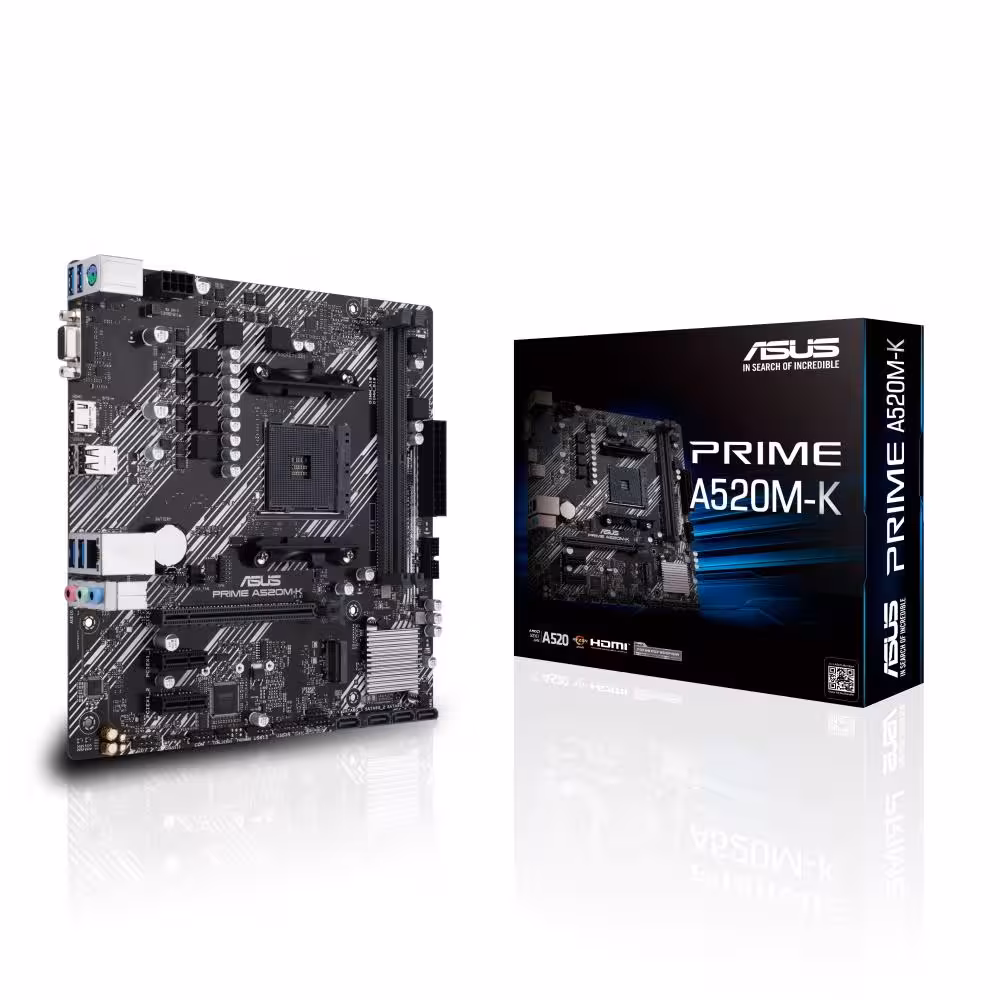

ASUS PRIME A520M-K AMD A520 AM4 Micro-ATX Motherboard DDR4, M.2

Built on the AMD A520 chipset with an AM4 socket, this Micro-ATX motherboard supports DDR4 memory up to 4600MHz (O.C.). It features a dedicated M.2 slot for high-speed storage and offers comprehensive connectivity including HDMI, VGA, and USB 3.2 Gen 1 ports. The board also includes Realtek 1Gb Ethernet and 7.1 Surround Sound high-definition audio.

VIP Computers is the UK's largest independent distributor of PC components, peripherals and associated products. VIP specialises in providing components and software that system integrators need to build PCs. The VIP Group has seen strong and continued growth since 1990. VIP has over 20 years’ experience of providing a flexible and reliable distribution service to customers, ranging from small independent retailers and etailer to major high-street chain stores.

UPC: 192876826928

Package Type: Retail

Warranty: 3 Years

BIOS: 256 Mb Flash ROM, UEFI AMI BIOS

Chipset: AMD A520

RAM Technology: DDR4 (Dual Channel)

RAM Slots: 2 x 288-pin

RAM Speeds: Up to DDR4 4600 (O.C.)

Max. Memory Support: 64GB

PCI Express 3.0 x16: 1

PCI Express 3.0 x1: 2

S-ATA 6Gb/s Port(s): 4

RAID: Raid 0/1/5/10

M.2 Socket(s): 1

On-Board LAN: 1 x Realtek RTL8111H 1Gb Ethernet

On-Board Audio: Realtek ALC887 7.1 Surround Sound High Definition Audio CODEC

On-Board Video: Processor with integrated graphics is required

Back PS/2 Keyboard/Mouse Port: 1

Back USB 2.0 Port(s): 2

Back USB 3.2 Port(s) Type-A Gen 1: 4

Back VGA Port(s): 1

Back HDMI Port(s): 1

Back LAN Port(s): 1

Back Audio Jack(s): 3

24-pin ATX Power: 1

8-pin ATX Power: 1

USB 2.0 Header(s): 2

USB 3.2 Header(s) Gen 1: 1

COM Port Header(s): 1

Front Panel Audio Connector: 1

TPM Header(s): 1

S/PDIF Out Header(s): 1

Form Factor: Micro ATX

Product Width: 221mm

Product Length: 226mm

Package Width: 26cm

Package Length: 27cm

Package Height: 5cm

Gross Weight: 0.89Kg

Special Features: ASUS DIGI+ VRM, ASUS LANGuard, ASUS Overvoltage Protection, ASUS SafeSlot Core, ASUS Stainless-Steel Back I/O

In the box: Motherboard; 2 x SATA 6Gb/s Cables; IO Shield; 1 x M.2 SSD Screw Package; Support Disk; Manual
